Push-pull toggle clamps made of galvanized quality steel or stainless steel

Push-pull toggle clamps are characterized by a plunger that presses against a workpiece parallel to the work surface during the clamping process. This allows, for example, sheets, workpieces, or components to be pressed against each other, or narrow workpieces to be positioned and fixed vertically on the base surface. Most push-pull toggle clamps lock in both extended and retracted positions, allowing them to be used as both push and pull clamps. We offer a very wide range of push-pull toggle clamps, including flat compact designs, with and without angle base, heavy-duty versions, precision versions, and stainless steel versions. Some models can be supplied with an optional safety lock.

QUICKLINKS Push-pull toggle clamp versions

Mini push-pull toggle clamps, flat designs
Mini push-pull toggle clamps, flat design
Push-pull toggle clamps with horizontal flat mounting plate
with horizontal base plate
Push-pull toggle clamps with front-end mounting thread
with front-end mounting thread
Push-pull toggle clamps with angle base
with angle base
Push-pull toggle clamps with vertical mounting base
with vertical base
Heavy-duty push-pull toggle clamps
Heavy-duty push-pull clamps
Safety lock mechanism
All push-pull clamps with safety lock
Stainless steel version
All push-pull clamps in stainless steel

M-Series

M-Series Push-Pull Clamps
Holding Capacity [kN]
0
Stroke [mm]
pdf-Download
M-Series Push-Pull Clamps

M60DS

M60DS Straight Line Action Clamps with safety lock
Holding Capacity [kN]
11
Stroke [mm]
35
with safety lock
Heavy Duty Straight Line Action Clamp

M66

M66 Heavy duty push-pull type toggle clamp with solid hand lever
Holding Capacity [kN]
7 – 12
Stroke [mm]
32 – 50
heavy duty type
Push-Pull type toggle clamp

M66C

M66C Heavy duty push-pull type toggle clamp with reversible lever
Holding Capacity [kN]
7 – 45
Stroke [mm]
30.5 – 106
with reversible lever
Push-Pull type toggle clamp

M64

M64 Heavy duty push-pull type toggle clamp with malleable cast iron, varnished body
Holding Capacity [kN]
4 – 25
Stroke [mm]
32 – 50
heavy duty type
Push-Pull type toggle clamp

M66K

M66K Heavy duty Straight Line Action Clamps with square solid plunger
Holding Capacity [kN]
12
Stroke [mm]
50
with square rod
Push-Pull type toggle clamp

M68

M68 Precision type heavy duty push-pull toggle clamp
Holding Capacity [kN]
15
Stroke [mm]
40 – 90
heavy duty, weldable type
Push-Pull type toggle clamp

DST-362

DST-362 Push-Pull Toggle Clamps with fastening thread-nose mounted type
Holding Capacity [kN]
0.91 – 3.18
Stroke [mm]
20 – 65.5
with fastening thread
Push-Pull type toggle clamps

M61

M61 Push-pull type toggle clamp with fastening thread
Holding Capacity [kN]
1 – 4
Stroke [mm]
21 – 67
front/nose mounted type
Push-Pull type toggle clamp

M61P

M61P Stainless Steel Push-pull type toggle clamp with fastening thread
Holding Capacity [kN]
1 – 2.5
Stroke [mm]
21 – 38
stainless steel | nose mounted
Push-Pull type toggle clamp

M60

M60 Push-pull type toggle clamp with angle base
Holding Capacity [kN]
0.8 – 4.5
Stroke [mm]
16 – 40
with angle base
Push-Pull type toggle clamp

M60P

M60P Stainless Steel Push-pull type toggle clamp with angle base
Holding Capacity [kN]
2.5 – 4.5
Stroke [mm]
32 – 40
with angle base
Push-Pull type toggle clamp

M60S

M60S Push-pull type toggle clamp with safety latch
Holding Capacity [kN]
2.5
Stroke [mm]
32
with safety latch
Push-pull type toggle clamp

DST30XXX

Push-Pull type toggle clamps, phosphated body and mounting bracket
Holding Capacity [kN]
2.5 – 4.5
Stroke [mm]
32 – 38
phosphated body
Push-Pull type toggle clamp

M65S

M65S Straight Line Action Clamps with safety lock
Holding Capacity [kN]
2.7
Stroke [mm]
26
with safety lock
Straight Line Action Clamps

M62

M62 Push-pull type toggle clamp with flat base and handle
Holding Capacity [kN]
2 – 4
Stroke [mm]
32 – 44
flat base and handle
Push-Pull type toggle clamp

DST-304/305

Push-Pull type toggle clamp-cast body
Holding Capacity [kN]
1.8 – 6.8
Stroke [mm]
32 – 60
cast varnished body
Push-Pull type toggle clamps

M60D

M60D Push-pull type toggle clamp with vertical mounting base
Holding Capacity [kN]
0.8 – 4.5
Stroke [mm]
16 – 40
with vertical base
Push-Pull type toggle clamp

DST-301-CL

DST-301-CL Push-Pull toggle clamp with cast body, mini type-low profile 400N
Holding Capacity [kN]
0.4
Stroke [mm]
16.4
low profile, counter-clockwise rotation
Mini Push-Pull toggle Clamp

DST-301-CR

DST-301-CR Push-Pull toggle clamp with cast body, mini type-low profile 400N
Holding Capacity [kN]
0.4
Stroke [mm]
16.4
low profile, clockwise rotation
Mini Push-Pull toggle Clamp

DST-301-AM

DST-301-AM Push-Pull toggle clamp,mini type-low profile 450N
Holding Capacity [kN]
0.45
Stroke [mm]
16.7
low profile, flat base
Mini Push-Pull toggle Clamp

DST-301-AMSS

DST-301-AMSS Push-Pull toggle clamp, stainless steel, mini type-low profile 450N
Holding Capacity [kN]
0.45
Stroke [mm]
16.7
stainless steel
Mini Push-Pull toggle Clamp

DST-301-BM

DST-301-BM Push-Pull toggle clamp,mini type-low profile 450N
Holding Capacity [kN]
0.45
Stroke [mm]
16.7
low profile, flat base
Mini Push-Pull toggle Clamp

DST-36006

DST-36006 Push-Pull toggle clamp, mini type-low profile, 12mm stroke- 500N
Holding Capacity [kN]
0.5
Stroke [mm]
12
low profile, flat base
Mini-Schubstangenspanner

DST-36070

DST-36070 Mini Push-Pull toggle clamp, low profile, 10mm stroke- 500N
Holding Capacity [kN]
0.5
Stroke [mm]
10
flache Bauform
Mini-Schubstangenspanner

DST-302-CL

DST-302-CL Push-Pull toggle clamp, mini type-low profile, 20mm stroke-820N
Holding Capacity [kN]
0.82
Stroke [mm]
20
low profile, counter-clockwise rotation
Mini Push-Pull toggle Clamp

DST-302-CR

DST-302-CR Push-Pull toggle clamp, mini type-low profile, 20mm stroke-820N
Holding Capacity [kN]
0.82
Stroke [mm]
20
low profile, clockwise rotation
Mini Push-Pull toggle Clamp

DST-302-FM

DST-302-FM Push-Pull toggle clamp, mini type-low profile 1360N
Holding Capacity [kN]
1.36
Stroke [mm]
32
flat base
Mini Push-Pull toggle Clamp

DST-302-FMSS

DST-302-FMSS Push-Pull toggle clamp, stainless steel, low profile, mini type 1360N
Holding Capacity [kN]
1.36
Stroke [mm]
32
stainless steel
Mini Push-Pull toggle Clamp

DST-302-DM

DM- Push-Pull toggle clamp with flat base, low profile 1600N
Holding Capacity [kN]
1.6
Stroke [mm]
12
Stahlausführung
Push-Pull type toggle clamp

DST-302-DMSS

DST-302-DMSS Push-Pull toggle clamp, stainless steel, low profile, mini type 1600N
Holding Capacity [kN]
1.6
Stroke [mm]
12
stainless steel
Mini Push-Pull toggle Clamp

DST-30282-M

DST-30282-M Push-Pull clamp vertical base, stroke 16mm, 1600N
Holding Capacity [kN]
1.6
Stroke [mm]
16
vertical base
Push-Pull type toggle clamp

DST-36020

DST-36020 Push-pull toggle clamp with flat base -29mm stroke-1800n
Holding Capacity [kN]
1.8
Stroke [mm]
29.7
optional anti-rotation push rod
Push-Pull type toggle clamps

DST-36092-M

DST-36092-M Push-Pull Toggle Clamp with flat base, 32mm stroke 1800n
Holding Capacity [kN]
1.8
Stroke [mm]
32
flat base
Push-Pull type toggle clamps

DST-36092-MSS

DST-36092-MSS Push-Pull toggle Clamp with flat base, 32mm stroke, stainless steel 1800n
Holding Capacity [kN]
1.8
Stroke [mm]
32
stainless steel
Push-Pull type toggle clamps

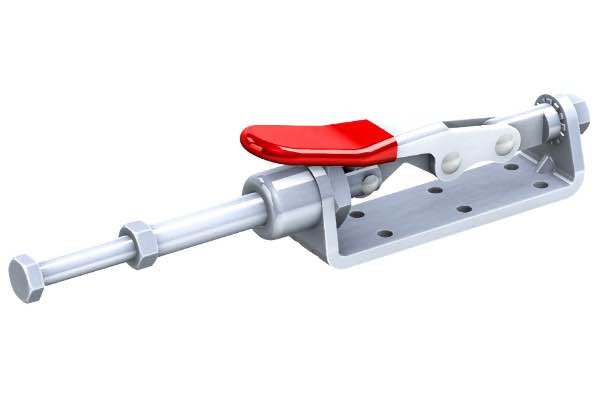

GH-30606

GH-30606 straight line action clamp with narrow flange base, 40mm stroke, 2000N
Holding Capacity [kN]
2
Stroke [mm]
40
narrow base | low profile
Push-Pull type toggle clamps

DST-31501

DST-31501 Push-Pull Toggle Clamp with flat base, 30mm stroke, 2000N
Holding Capacity [kN]
2
Stroke [mm]
30
flat base
Push-Pull type toggle clamps

DST-36015-T

DST-36015-T Straight Line Action Clamps with safety lock and solid base
Holding Capacity [kN]
2.25
Stroke [mm]
17.5
with safety lock
Straight Line Action Clamps

DST-305-CM

DST-305-CM Push-Pull type toggle clamps, cast varnished body, 32mm stroke, 2270N
Holding Capacity [kN]
2.27
Stroke [mm]
32
cast iron body/base
Push-Pull type toggle clamps

DST-304-CM

DST-304-CM Push-Pull type toggle clamps, cast varnished body, 32mm stroke, 2270N
Holding Capacity [kN]
2.27
Stroke [mm]
32
cast iron body/base
Push-Pull type toggle clamps

DST-304-CMT

DST-304-CMT Push-Pull type toggle clamps, flat base with safety lock
Holding Capacity [kN]
2.27
Stroke [mm]
32
with safety lock
Push-Pull type toggle clamps

DST-36003-M

DST-36003-M Push-pull toggle clamp with solid base body, 32mm stroke, 2720N
Holding Capacity [kN]
2.72
Stroke [mm]
31.8
solid base body
Push-Pull type toggle clamps

GH-36003-MR

GH-36003-MR Push-Pull type toggle clamp, solid flat base with safety lock 2270N
Holding Capacity [kN]
2.72
Stroke [mm]
31.8
with safety lock
Push-Pull type toggle clamps

DST-30290-M

DST-30290-M Push-Pull Toggle Clamp-Low Profile, horizontal base, stroke 23mm-3000N
Holding Capacity [kN]
3
Stroke [mm]
23
horizontal base
Push-Pull type toggle clamp

DST-36060

DST-36060 Push-Pull Toggle Clamp-Low Profile, low profile, 28mm stroke-3000N
Holding Capacity [kN]
3
Stroke [mm]
28
low profile, flat base
Mini Push-Pull toggle Clamp

DST-30292-M

DST-30292-M Push-Pull Toggle Clamp-Low Profile, vertical base, 23mm stroke-3000N
Holding Capacity [kN]
3
Stroke [mm]
23
vertical base
Schubstangenspanner

DST-36080

GH-36080 Push-Pull Toggle Clamp with Extended Stroke of 80mm-3050N
Holding Capacity [kN]
3.05
Stroke [mm]
80
extra großer Hub
Schubstangenspanner

DST-30607-M

DST-30607-M Push-pull toggle clamp with forged steel solid base body, 41mm stroke, 2720N
Holding Capacity [kN]
3.18
Stroke [mm]
41.3
forged steel solid base
Push-Pull type toggle clamps

DST-30608-M

DST-30608-M Push-Pull toggle clamp with flat base and square plunger 3180N
Holding Capacity [kN]
3.18
Stroke [mm]
41.3
square plunger rod
Push-Pull type toggle clamps

DST-36330-ML

DST-36330-ML Heavy-duty Push-Pull toggle clamp with long plunger guide
Holding Capacity [kN]
3.5
Stroke [mm]
78
Heavy duty | long rod guide
Push-Pull type toggle clamps

DST-36010-M

DST-36010-M Push-Pull toggle clamp with flat base, 40.8 stroke, holding force 3640N
Holding Capacity [kN]
3.64
Stroke [mm]
40.8
space saving flange
Push-Pull type toggle clamps

DST-36012-M

Push-pull toggle clamp with vertical base, 40.8mm stroke, 3640N
Holding Capacity [kN]
3.64
Stroke [mm]
40.8
vertical base
Push-Pull type toggle clamps

DST-304-EM

DST-304-EM Push-Pull type toggle clamps, cast varnished body, 42mm stroke, 3860N
Holding Capacity [kN]
3.86
Stroke [mm]
42
cast iron body/base
Push-Pull type toggle clamps

DST-304-EMSS

DST-304-EMSS Push-Pull type toggle clamps, flat base, stainless steel, 42mm stroke, 3860N
Holding Capacity [kN]
3.86
Stroke [mm]
42
stainless steel
Push-Pull type toggle clamps

DST-305-EM

DST-305-EM Push-Pull type toggle clamps, cast varnished body, 42mm stroke, 3860N
Holding Capacity [kN]
3.86
Stroke [mm]
42
cast iron body/base
Push-Pull type toggle clamps

DST-303-EM

DST-303-EM Push-Pull Toggle Clamp with flat base, 50mm stroke 4540n
Holding Capacity [kN]
4.54
Stroke [mm]
50
Optional anti-rotation lock
Push-Pull type toggle clamps

DST-304-HM

DST-304-HM Push-Pull type toggle clamps, cast varnished body, 60mm stroke, 6800N
Holding Capacity [kN]
6.8
Stroke [mm]
60
cast iron body/base
Push-Pull type toggle clamps

DST-305-HM

DST-305-HM Push-Pull type toggle clamps, cast varnished body, 60mm stroke, 6800N
Holding Capacity [kN]
6.8
Stroke [mm]
60
cast iron body/base
Push-Pull type toggle clamps

DST-36330-M

DST-36330-M Push-pull toggle clamp with forged steel solid base body, 50mm stroke, 11360N
Holding Capacity [kN]
11.36
Stroke [mm]
50
solid base body
Push-Pull type toggle clamps

DST-30

Heavy-duty weldable push-pull toggle clamp in precision design
Holding Capacity [kN]
22.7
Stroke [mm]
77.8
Heavy duty | precision design
Push-Pull type toggle clamps

Technical Product Overview:

Model No. Material Holding Capacity
(kN)		 Stroke
(mm)		 Height
(mm)		 Length
(mm)		 Handle
Angle		 Weight
(g)		 Link
M-Series Steel 0 0 Details
M60DS Steel 11 35 105 193 - 500 Details
M66 Steel 7 – 12 32 – 50 65 – 95 122 – 185 - 580 – 1560 Details
M66C Steel 7 – 45 30.5 – 106 65 – 255 122 – 310 - 600 – 4500 Details
M64 Steel 4 – 25 32 – 50 115 – 170 191 – 333 - 880 – 3745 Details
M66K Steel 12 50 88 245 - 2190 Details
M68 Steel 15 40 – 90 166 – 172 190 – 380 - 2080 – 2800 Details
DST-362 Stahl, Edelstahl 0.91 – 3.18 20 – 65.5 75 – 137 64.2 – 171 - 113 – 770 Details
M61 Steel 1 – 4 21 – 67 85 – 155 70 – 175 - 160 – 930 Details
M61P Edelstahl 1 – 2.5 21 – 38 85 – 135 70 – 110 - 160 – 380 Details
M60 Steel 0.8 – 4.5 16 – 40 40 – 123 110 – 230 - 80 – 960 Details
M60P Edelstahl 2.5 – 4.5 32 – 40 102 – 123 190 – 230 - 450 – 960 Details
M60S Steel 2.5 32 102 190 - 450 Details
DST30XXX Steel 2.5 – 4.5 32 – 38 85 – 115.6 138 – 175 - 385 – 774 Details
M65S Steel 2.7 26 87 150 - 410 Details
M62 Steel 2 – 4 32 – 44 95 – 115 186 – 190 - 575 – 1010 Details
DST-304/305 Steel 1.8 – 6.8 32 – 60 76.5 – 171.6 125.7 – 234 - 340 – 1480 Details
M60D Steel 0.8 – 4.5 16 – 40 40 – 123 110 – 230 - 80 – 960 Details
DST-301-CL Steel 0.4 16.4 17 75 190 56 Details
DST-301-CR Steel 0.4 16.4 17 75 190 56 Details
DST-301-AM Steel 0.45 16.7 40.4 68 190 50 Details
DST-301-AMSS Edelstahl 0.45 16.7 40.4 68 190 50 Details
DST-301-BM Steel 0.45 16.7 40.4 68 190 50 Details
DST-36006 Steel 0.5 12 67.3 63.5 93 64 Details
DST-36070 Steel 0.5 10 23 126 66 100 Details
DST-302-CL Steel 0.82 20 19.5 180 60 Details
DST-302-CR Steel 0.82 20 19.5 180 60 Details
DST-302-FM Steel 1.36 32 78 139.5 180 300 Details
DST-302-FMSS Edelstahl 1.36 32 78 139.5 180 300 Details
DST-302-DM Steel 1.6 12 50 220.5 45 454 Details
DST-302-DMSS Edelstahl 1.6 12 50 220.5 45 454 Details
DST-30282-M Steel 1.6 16 71.5 220.5 45 454 Details
DST-36020 Steel 1.8 29.7 99.5 125 144.5 380 Details
DST-36092-M Steel 1.8 32 82 130 180 397 Details
DST-36092-MSS Edelstahl 1.8 32 82 130 180 397 Details
GH-30606 Steel 2 40 48.5 171 125 370 Details
DST-31501 Steel 2 30 112 151 190 380 Details
DST-36015-T Steel 2.25 17.5 42 75 180 150 Details
DST-305-CM Steel 2.27 32 97 125.7 180 340 Details
DST-304-CM Steel 2.27 32 76.5 125.7 180 340 Details
DST-304-CMT Steel 2.27 32 92 126.17 340 Details
DST-36003-M Steel 2.72 31.8 84 124.4 180 395 Details
GH-36003-MR Steel 2.72 31.8 81 125 180 420 Details
DST-30290-M Steel 3 23 319 45 1270 Details
DST-36060 Steel 3 28 55.5 300 76 690 Details
DST-30292-M Steel 3 23 318 45 1270 Details
DST-36080 Steel 3.05 80 139 236 180 1000 Details
DST-30607-M Steel 3.18 41.3 83 153.6 180 700 Details
DST-30608-M Steel 3.18 41.3 83 153.6 180 700 Details
DST-36330-ML Steel 3.5 78 125 262 185 1250 Details
DST-36010-M Steel 3.64 40.8 110 171.5 180 800 Details
DST-36012-M Steel 3.64 40.8 110 171.5 180 800 Details
DST-304-EM Steel 3.86 42 96.4 158.2 180 580 Details
DST-304-EMSS Edelstahl 3.86 42 96.2 158.2 183 580 Details
DST-305-EM Steel 3.86 42 123 158.2 180 580 Details
DST-303-EM Steel 4.54 50 148 250 190 965 Details
DST-304-HM Steel 6.8 60 138 234 180 1480 Details
DST-305-HM Steel 6.8 60 171.6 234 180 1480 Details
DST-36330-M Steel 11.36 50 77 180 180 1050 Details
DST-30 Steel 22.7 77.8 Details
