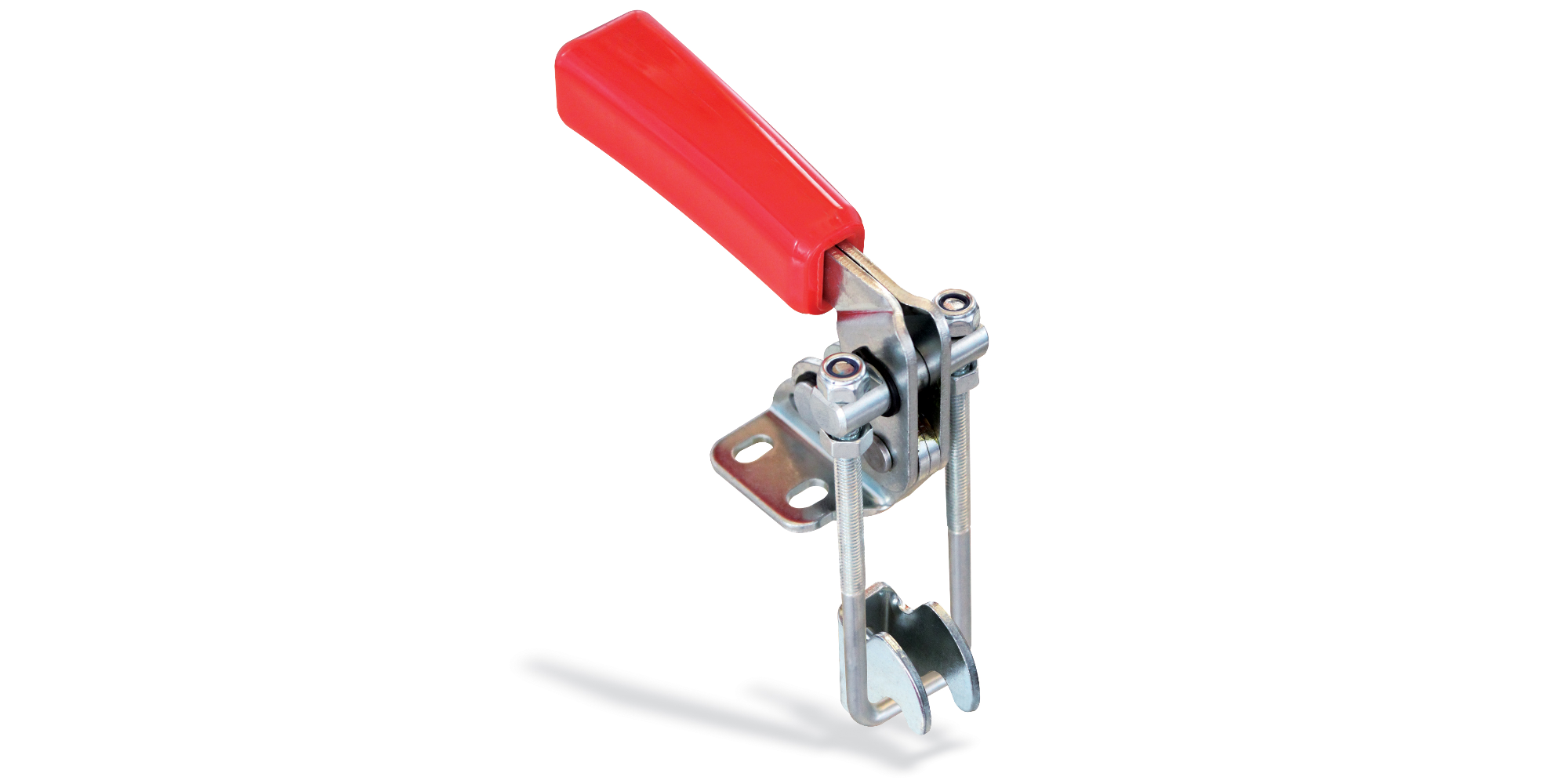

M40D Hook type toggle clamp

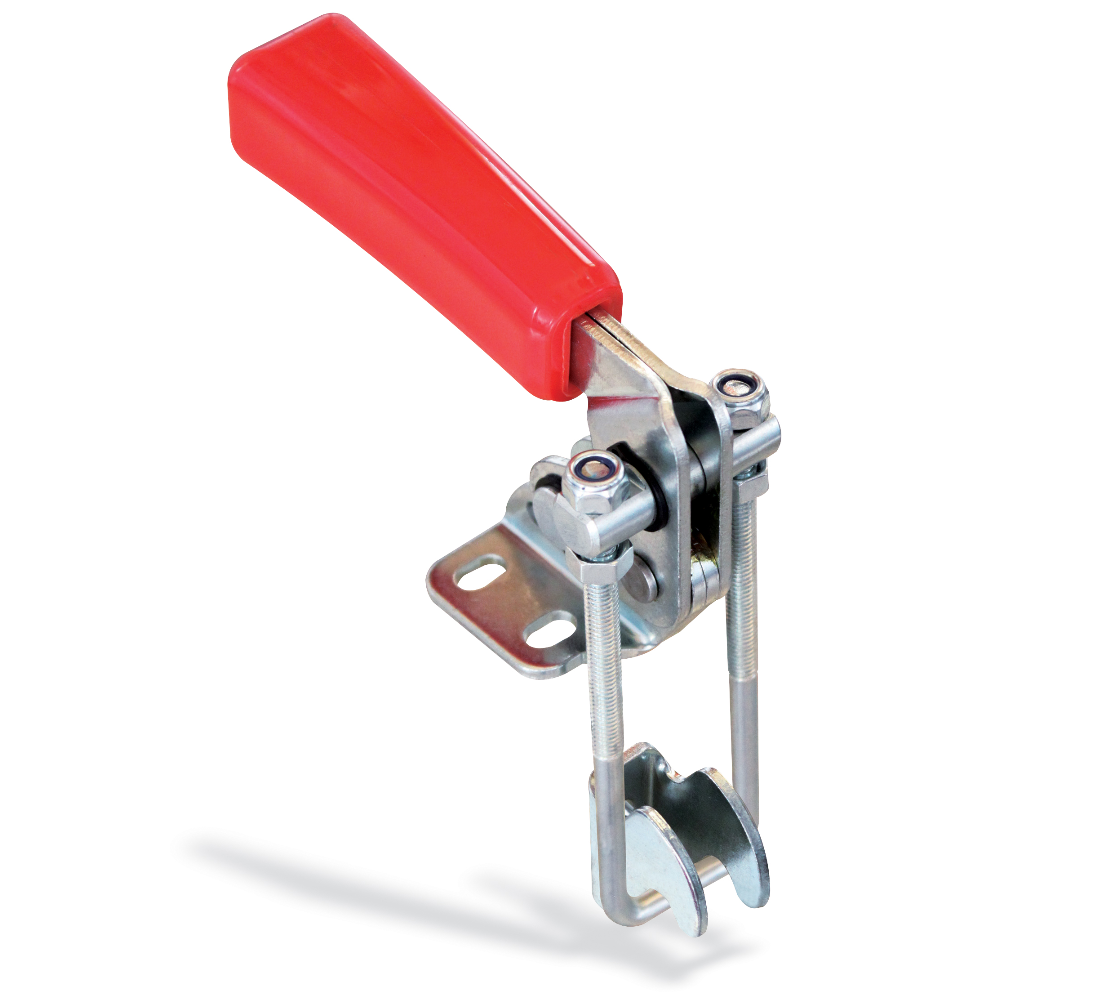

M40D Vertical Latch Clamps - Optional with Security Lock

M40D Horizontal Latch Clamp

Vertical acting latch type toggle Clamps

  • Quality steel zinc-plated and passivated
  • Rivets made of stainless steel in case-hardened bushings
  • Bearings and bushings are greased/pre-lubricated
  • U-hook and tension sleeve hardened
  • Mechanism with preventive function to increase operator safety
  • Oil-resistant red softgrip handle, robust and ergonomically shaped
  • Complete with hook and counter catch
  • e.g. replacement for 6848V, 6848VNI etc.
  • All sizes available in STAINLESS STEEL version with locking upon request
  • CAD files are available for free download below!
Product Datasheet (Download)
Order-No.SizeF1
⬇︎		Adjustment Range
U-hook		Total-
height		Total-
length		WeightCADPrice
[kN][mm][mm][mm][g][EUR]
M40D-2 2 1.6 26 45 100 147 13,40
M40D-3 3 3.2 28 68 135 337 16,20
M40D-4 4 7 36 90 165 684 28,90
⬇︎ ⬇︎ M40DS - VERSION WITH SAFETY LOCK ⬇︎ ⬇︎
M40DS-3 3 3.2 28 68 135 340 22,80
M40DS-4 4 7 36 90 165 685 34,90

M40D Vertical Latch Clamp Technical Drawing Datasheet
Order-NoSizeBCDD1EFHLMNPSS1TCAD
M40D-2 2 70 11 5.2 M4 24 - 47 5 - 28 47 38 M4 21.7 13 6.8 4.5 26
M40D-3 3 117 14 6.5 M6 33 - 63 6.5 - 37 70 48 M6 28 19 8 6 35
M40D-4 4 145 19 8.5 M8 43 - 81 9 - 47 94.5 64.5 M8 39 32 9.6 8 53.5

MS40/4 U-Hook

MS40-4 U-Hook Accessory for Horizontal Latch Clamp
MS40-4 U-Hook Technical Drawing

U-hook - Latch

  • Galvanized and passivated
  • Also available in stainless steel
  • Optional U-hook lengths are available !
SizeMLL1ck
0-1 M4 55 25 19 23
0-2 M4 83 52 24 28
1 M5 85 40 25 30
2 M6 112 67 31 37
3 M8 146 87 42 50
4 M10 130 60 44.5 54.5
4-1 M10 170 80 54 64

MS40/5 Counter Catch

MS40-5 Counter Catch Accessory for Horizontal Latch Clamp

Gegenhalter, Gegenlager

  • Galvanized and passivated
  • Also available in stainless steel
  • Modifications are possible !
Sizedcklmhh1
1 4.5 10 5 20 13.5 12 17.5
2 5.5 11 7.5 26 136 15 20
3 6.5 14 6 35 21.5 19 29
4 8.5 19 8 47 28 25 39
