HLCT Hydraulic Link Clamp - Single Acting
Hydraulic Link Clamp - Hydraulic Cylinder:
- High-performance clamp in small, compact size
- Single acting with return spring
- Housing design: Top flange (upper flange)
- Due to the particularly small dimensions under the flange, connection bores and supply lines can run under the clamping element
- This particularly low height allows use in very confined spaces
- High clamping forces from 2.45kN to 17.45kN
- Clamping force depends on the clamp arm length and hydraulic pressure
- Use with upstream flow control valve recommended
- Min. operating pressure: 25bar
- Max. operating pressure: 70bar
- Operating temperature: -10 ~ +70°C
- Various piston sizes and optionally with O-ring connection (Type Y) or pipeline connection (Type G)
- Special versions available on request!
➝ CAD files and prices on request!
Product Datasheet (Download)Example Order Number:
HLCT - 02 L
Series – Body size – Mounting direction
| ① | SERIES | HLCT | |
| ② | Body Size | 02 / 04 / 06 / 10 / 16 / 25 | |
| ③ | Mounting Direction of the Clamp Arm |
Blank: Standard front R: Right L: Left |
| Model No. | Clamping Force at 70 bar | Clamping Stroke | Total Stroke | Oil Capacity Clamping | Eff. Piston Area Clamping | Return Spring Force |
|---|---|---|---|---|---|---|
| [kN] | [mm] | [mm] | [cm³] | [cm²] | [kN] | |
| HLCT-02 | 2.45 | 17.5 | 20.5 | 10 | 4.9 | 0.25 |
| HLCT-04 | 3.27 | 20.5 | 23.5 | 16.7 | 7.1 | 0.4 |
| HLCT-06 | 4.08 | 23 | 26 | 25 | 9.6 | 0.63 |
| HLCT-10 | 6.94 | 26.5 | 29.5 | 44.8 | 15.2 | 0.81 |
| HLCT-16 | 11.33 | 33 | 36 | 88.6 | 24.6 | 1.52 |
| HLCT-25 | 17.45 | 42 | 45 | 173.3 | 38.5 | 1.58 |

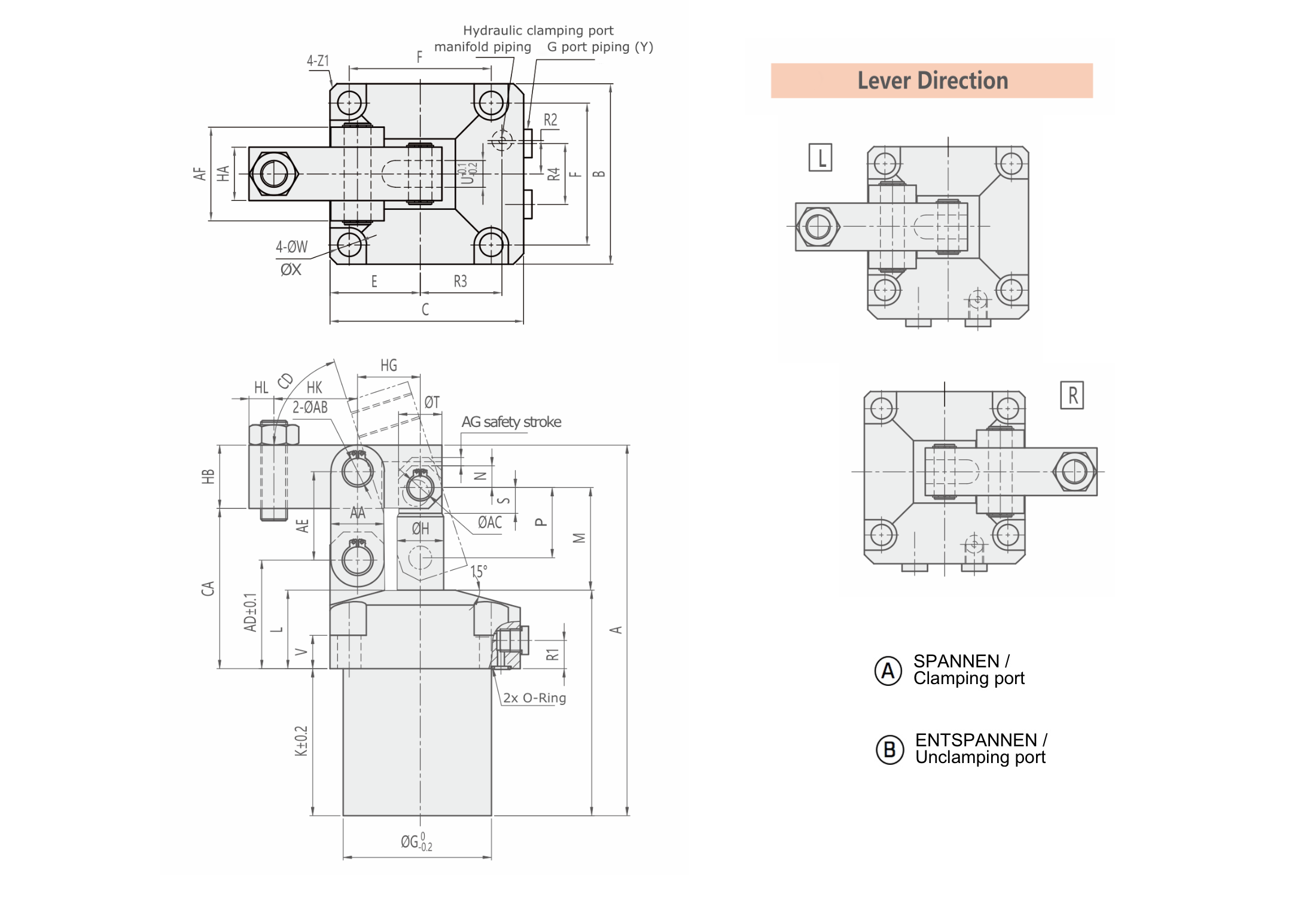

| Model | A | B | C | E | F | G | H | J | K | L | M | N | P | R1 | R2 | R3 | R4 | S | T | U | V | W | X | Y | Z1 | O-Ring | AA | AB | AC | AD | AE | AF | AG | CA | CD | HA | HB | HG | HK | HL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HLCT-02 | 101 | 45 | 55 | 22.5 | 35 | 39 | 12 | 64 | 37.5 | 26.5 | 28.5 | 5 | 17.5 | 12.5 | 11 | 25 | 20 | 6.5 | 10 | 6 | 18 | 5.5 | 10 | G1/8 | C1.5 | P7 | 11 | 0 | 0 | 34 | 24 | 21 | 3 | 49.5 | ≈69° | 12 | 14 | 16.5 | 20 | 6 |
| HLCT-04 | 114 | 50 | 60 | 25 | 40 | 47 | 14 | 72 | 45.5 | 26.5 | 32 | 6 | 20.5 | 12.5 | 12 | 28 | 22 | 7 | 12 | 6 | 17 | 5.5 | 10 | G1/8 | C2.5 | P7 | 13 | 0 | 0 | 36 | 26 | 21 | 3 | 52.5 | ≈71° | 12 | 16 | 18.5 | 23.5 | 6 |
| HLCT-06 | 132.5 | 57 | 66 | 28.5 | 46 | 53 | 14 | 84 | 55.5 | 28.5 | 34.5 | 6 | 23 | 12.5 | 14 | 30.5 | 26 | 7 | 12 | 8 | 17 | 6.8 | 12 | G1/8 | C2.5 | P7 | 15 | 0 | 0 | 39 | 30 | 28 | 3 | 57 | ≈70° | 16 | 20 | 21 | 29 | 8 |
| HLCT-10 | 147 | 70 | 82 | 35 | 56 | 63 | 16 | 90 | 54 | 36 | 40 | 8 | 26.5 | 14 | 18 | 36 | 30 | 9 | 14 | 10 | 20 | 9 | 15 | G1/4 | C3 | P8 | 19 | 0 | 0 | 48 | 35.5 | 37 | 3 | 68 | ≈70° | 19 | 25 | 24.5 | 32 | 10 |
| HLCT-16 | 180 | 86 | 96 | 43 | 68 | 78 | 22.4 | 109 | 69 | 40 | 49 | 11 | 33 | 14 | 22.5 | 42 | 38 | 10.8 | 20 | 11 | 20 | 11 | 18.5 | G1/4 | C3.5 | P8 | 25 | 0 | 0 | 54.5 | 44 | 46 | 3 | 80 | ≈69° | 22 | 31 | 30.5 | 39 | 11 |
| HLCT-25 | 214 | 108 | 120 | 54 | 88 | 100 | 28 | 127 | 80 | 47 | 61.5 | 13 | 42 | 21 | 25 | 57 | 50 | 14.5 | 26 | 16 | 20 | 14 | 20 | G3/8 | C5.5 | P10 | 32 | 0 | 0 | 65 | 53 | 56 | 3 | 96 | ≈72° | 32 | 38 | 37.5 | 50 | 15 |
