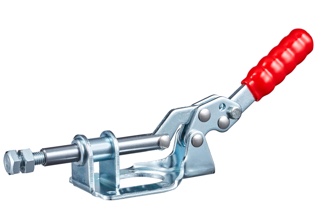

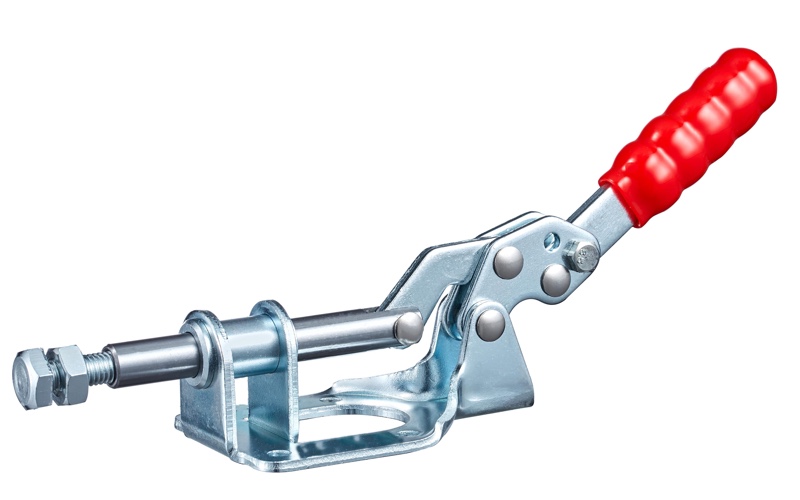

Push-Pull toggle clamp, low profile 1360N :
- STRAIGHT LINE ACTION CLAMP
- Holding Capacity 1360N
- low profile series with flat base
- Handle Opens: 180°
- locks in open and closed position
- can be used as Push- and Pull type clamp
- Weight : 300g
- Material: galvanic, zinc-plated high quality steel
- Hand grips designed for high user comfort
Note :
- similar to 605 etc...
- Also available in Stainless Steel (DST-302-FMSS)
- Prices on Request !
| Technical Specifications |
|---|
| Max. Holding Force (kN) |
1.36 |
| Stroke (mm) |
32 |
| Material |
galvanized steel |
| Weight (g) |
300 |
| Piston height |
24.6 |
| Overall height |
78 |
| Total length (mm) |
139.5 |
| Clamping screw |
FC-085012 |
| Handle angle |
180 |
| Base alignment |
flat base |
| Version |
Mini, Low-type |
| Series |
DST |
| Price |
on request
|
