DST-12050-SM Vertical acting toggle clamp 910N - DESETEC SPANNTECHNIK

DST-12050-SM Vertical acting Hold-Down Toggle Clamp with angle mounting base solid bar 910N

DST-12050-SM Vertical acting Hold-Down Toggle Clamp with angle mounting base solid bar 910N

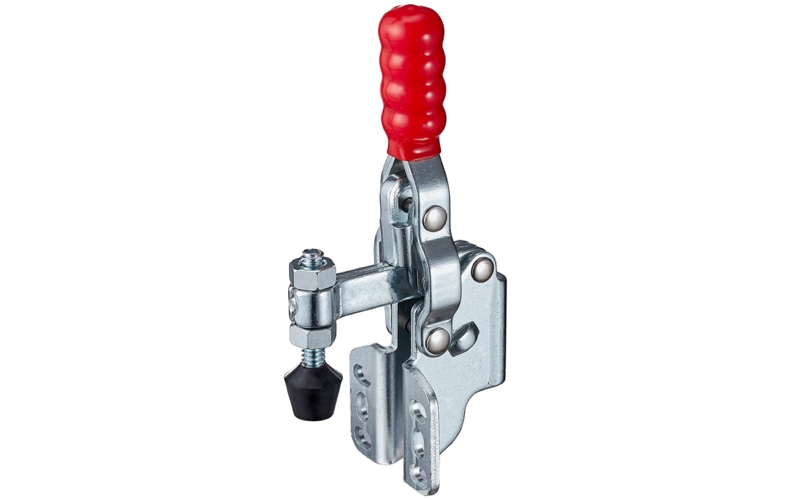

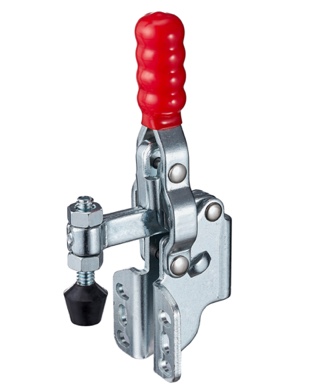

Vertical acting toggle clamp with angle base and solid bar:

Compact series
Holding Capacity : 910N
angle mounting base
solid bar, standard length
Bar Opens : 100°, Handle Opens : 60°
with clamping screw, washer and nut element
Weight : 186g

Note :

Material: galvanic, zinc-plated high quality steel
Hand grips designed for high user comfort
CAD-files and prices on request !

Technical Specifications
Item-Number	DST-12050-SM
Material	galvanized steel
Max. holding force (N)	910
Height under clamping arm (mm)	49.7
Overall height (mm)	130
Total length (mm)	63.6
Clamping arm length (mm)	28.5
Clamping arm opening angle °	100
Handle opening angle °	60
Safety interlock	Nein
Clamping screw	FC-14134
Base alignment	flanged base
Version	Normal
Weight (g)	170
Order number	DST-12050-SM
Series	DST
Price from	on request

DST-12050-SM Technical Drawing Vertical acting Hold-Down Toggle Clamp with angle mounting base solid bar 910N
