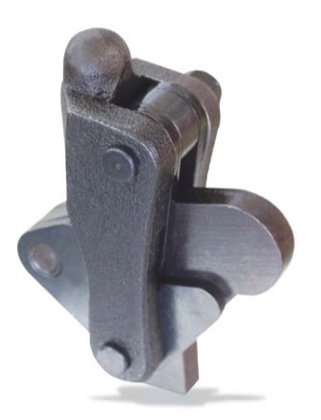

M30 Modular clamp with swivelling foot
- Heavy duty type with swivelling foot, weldable version
- clamp can be welded at an angle to it`s support
- Material body : quality steel, burnished
- Material Lever arm : cast steel, burnished
- Rivets of stainless steel
- Hinge pins and hinge bushes are case-hardened, reamed and ground
- All moving parts, joints and pins are permanent-lubricated and hardened
- Clamp nuts on lever arm to vary friction in movement.
Note :
- Supplement these base modular toggle clamps with your own clamping arms, handles etc. to meet the requirements of your specific application.
- CAD-files on request !
