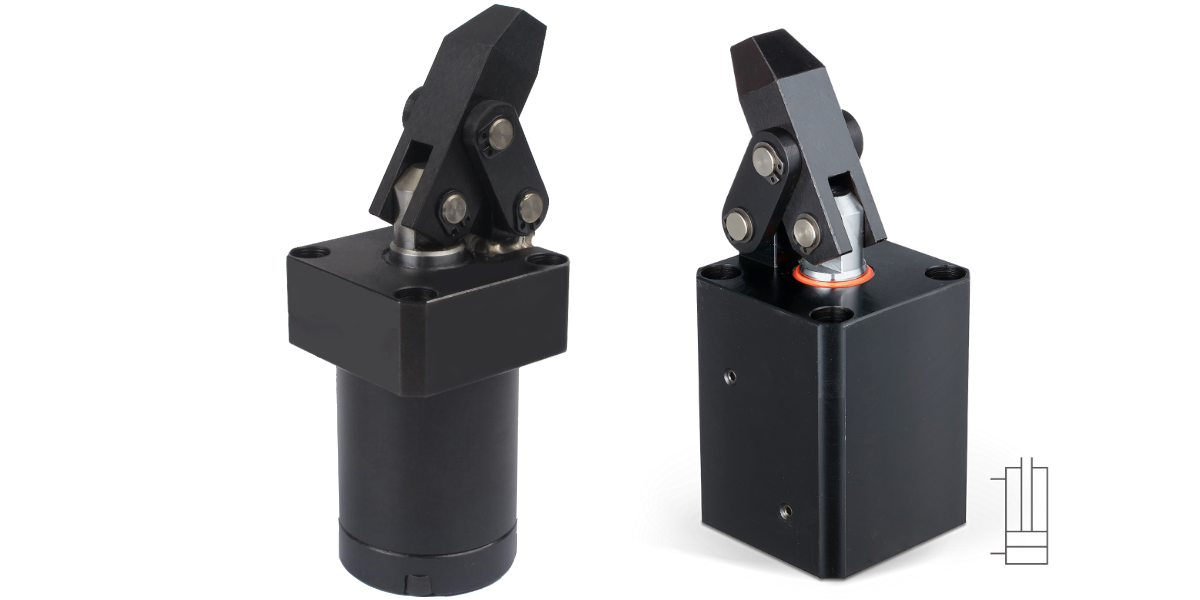

HLC Hydraulic Link Clamp - Hydraulic Cylinder

HLC Hydraulischer Hebelspanner

Hdyraulic Link Clamp - double acting :

  • compact series for use in tight places.
  • Smooth inside surface structure thank to special machining processes for long durability.
  • Available in block body type and flanged type.
  • Clamping forces 2,52kN to 14,82kN
  • complete with link mechanism and clamping arm
  • double acting hydraulic cylinder
  • various mounting and piping types
  • Operating pressure : 10 bar - 70 bar
  • Range of temperature : -10 to +70°C
  • Usable fluid : Genetal hydraulic oil, equivalent to ISO-VG-32

➝ CAD-files and prices on Request !

Ordering Indication : HLC - MF 25 R A
HLC
SERIES HLC
MF
Type Blank : Line type
M : Manifold type
MF : Manifold with flow control
FA : Flange type
FAM : Flange with manifold type
FAMT : Flange with flow control
25
Hydraulic cylinder
Inside diameter
Ø25,  Ø32,  Ø40,   Ø50,  Ø63
R
Lever arm direction Blank : front (Standard)
R : Right
L : Left
A
integrated

Model No.Clamping fore
at 70 bar
(kN)
Clamping stroke
(mm)
Total stroke
(mm)
Oil capacity
Clamp
[cm3]
Oil capacity
Unclamp
[cm3]
eff. piston
area clamp
[cm2]
eff. piston
area unclamp
[cm2]
HLC-25 2,52 22 25 12,28 5,93 4,91 2,37
HLC-32 4,12 22 25 20,10 12,25 8,04 4,9
HLC-40 6,18 26 30 37,68 25,86 12,56 8,62
HLC-50 9,81 30 34 66,74 45,80 19,63 13,47
HLC-63 14,82 40 44 124,64 85,04 31,16 21,26

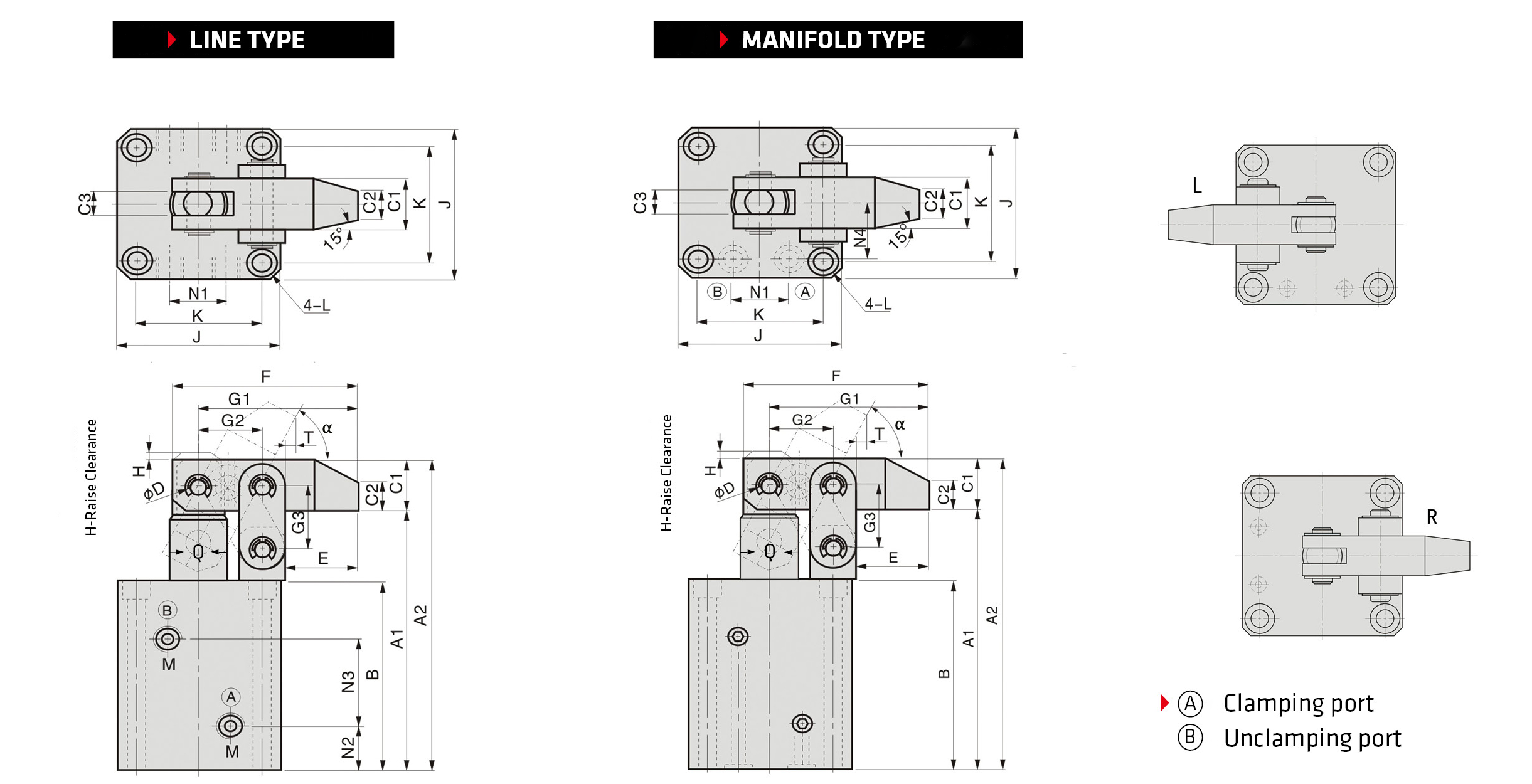

HLC Hydraulic Link Clamp Line and Manifold Type Technical Drawing
MODELLA1A2BC1C2C3ΦDEFG1G2G3HJKLMN1N2N3N4O-RingαTQ
HLC-25
HLC-M25
103 122 76 19 11 9 Φ8 25 64 55 22 24 3 55 42 Φ6.8-Φ10.5*6.5D PT1/8 18 17 33 20 P7 61° 4 Ø18
HLC-32
HLC-M32
112 131 85 19 11 9 Φ8 25 64 55 22 24 3 57 44 Φ6.8-Φ10.5*6.5D PT1/8 22 19 38 22 P7 61° 5 Ø20
HLC-40
HLC-M40
122 144 90 22 13 10 Φ10 30 77 66 26 29 4 69 52 Φ9-Φ14*9D PT1/4 26 19 40 26 P8 61° 5,5 Ø22.4
HLC-50
HLC-M50
137 162 100 25 15 11 Φ12 35,5 90 77 30 33 4 75 58 Φ9-Φ14*9D PT1/4 32 21,5 45 29 P7 61° 7,5 Ø28
HLC-63
HLC-M63
155 187 111 32 19 15 Φ15 43 110 94 36 39 4 96 75 Φ11-Φ18*11D PT1/4 38 22 52 38 P9 66° 2 Ø35.5

HLC-MF Hydraulic Link Clamp Manifold Type with Flow Control and Top flanged Type Technical Drawing
MODELA1A2BC1C2C3ΦDEFG1G2G3HØIJKLMNO-RingαTQ
HLC-MF25 112 131 85 19 11 9 Φ8 25 64 55 22 24 3 - 55 42 Φ6.8-Φ10.5x6.5D - 19 P7 61° 4 Ø18
HLC-MF32 115 134 88 19 11 9 Φ8 25 64 55 22 24 3 - 57 44 Φ6.8-Φ10.5x6.5D - 21 P7 52° 11 Ø20
HLC-MF40 130 152 98 22 13 10 Φ10 30 77 66 26 29 4 - 69 52 Φ9-Φ14x9D - 23 P9 58° 7,5 Ø22.4
HLC-MF50 145 170 108 25 15 11 Φ12 35,5 90 77 30 33 4 - 75 58 Φ9-Φ14x9D - 28 P9 61° 7,5 Ø28
HLC-MF63 163 195 119 32 19 15 Φ15 43 110 94 36 39 4 - 96 75 Φ11-Φ18x11D - 35 P9 66° 2 Ø35.5
HLC-FA25 49 131 63 19 11 9 Φ8 25 64 55 22 24 3 Φ45 55 42 Φ6.8-Φ10.5x6.5D PT1/4 25 - 61° 4 Ø18
HLC-FA32 52 134 63 19 11 9 Φ8 25 64 55 22 24 3 Ø50 57 44 Φ6.8-Φ10.5x6.5D PT1/4 32 - 61° 5 Ø20
HLC-FA40 57 152 73 22 13 10 Φ10 30 77 66 26 29 4 Ø58 69 52 Φ9-Φ14x9D PT1/4 40 - 61° 5,5 Ø22.4
HLC-FA50 67 170 78 25 15 11 Φ12 35,5 90 77 30 33 4 Ø68 75 58 Φ9-Φ14x9D PT1/4 50 - 61° 7,5 Ø28
HLC-FA63 74 196 90 32 19 15 Φ15 43 110 94 36 39 4 Ø82 98 75 Φ11-Φ18x11D PT1/4 63 - 66° 2 Ø35.5

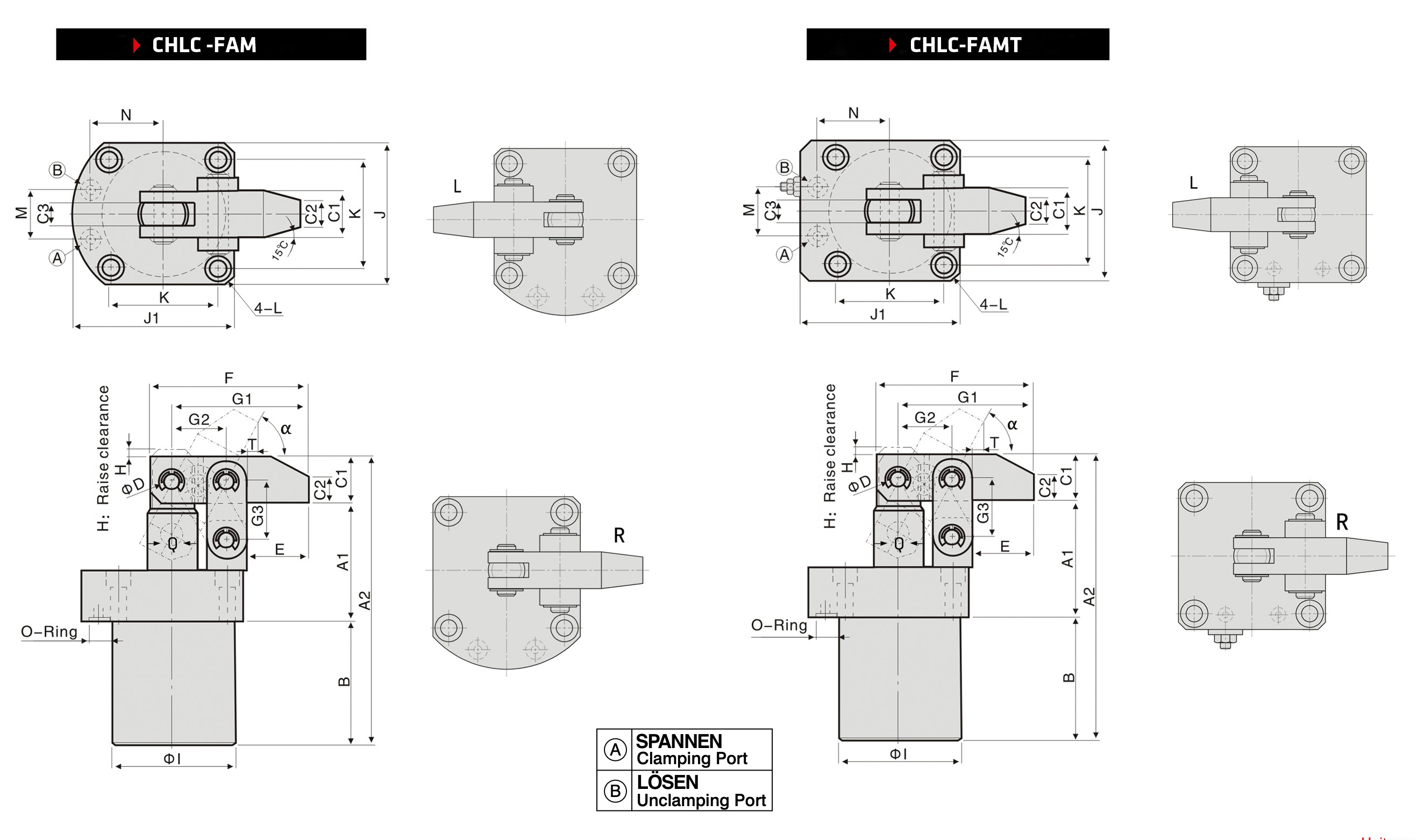

HLC-FAMT Hydraulic Link Clamp Top Flange Manifold Type Technical Drawing
MODELA1A2BC1C2C3ΦDEFG1G2G3HΦIJJ1KLMNO-RingαTQ
HLC-FAM25 49 122 54 19 11 9 Φ8 25 64 55 22 24 3 Φ45 55 64 42 Φ6.8-Φ10.5x6.5D 20 28 P6 61° 4 Ø18
HLC-FAM32 52 131 60 19 11 9 Φ8 25 64 55 22 24 3 Φ50 57 65.5 44 Φ6.8-Φ10.5x6.5D 22 29 P6 61° 5 Ø20
HLC-FAM40 57 144 65 22 13 10 Φ10 30 77 66 26 29 4 Φ58 69 79 52 Φ9-Φ13.5x9D 25 34,5 P9 61° 5,5 Ø22.4
HLC-FAM50 67 162 70 25 15 11 Φ12 35,5 90 77 30 33 4 Φ68 75 87 58 Φ9-Φ13.5x9D 30 39 P9 61° 7,5 Ø28
HLC-FAM63 74 187 81 32 19 15 Φ15 43 110 94 36 39 4 Φ82 98 114 75 Φ11-Φ18x11D 40 49.5 P9 66° 2 35.5
HLC-FAMT25 49 122 54 19 11 9 Φ8 25 64 55 22 24 3 Φ45 55 64 42 Φ6.8-Φ10.5x6.5D 20 28 P6 61° 4 Ø18
HLC-FAMT32 52 131 60 19 11 9 Φ8 25 64 55 22 24 3 Φ50 57 65.5 44 Φ6.8-Φ10.5x6.5D 22 29 P6 61° 5 Ø20
HLC-FAMT40 57 144 65 22 13 10 Φ10 30 77 66 26 29 4 Φ58 69 79 52 Φ9-Φ13.5x9D 25 34,5 P9 61° 5,5 Ø22.4
HLC-FAMT50 67 162 70 25 15 11 Φ12 35,5 90 77 30 33 4 Φ68 75 87 58 Φ9-Φ13.5x9D 30 39 P9 61° 7,5 Ø28
HLC-FAMT63 74 187 81 32 19 15 Φ15 43 110 94 36 39 4 Φ82 98 114 75 Φ11-Φ18x11D 40 49.5 P9 66° 2 35.5
