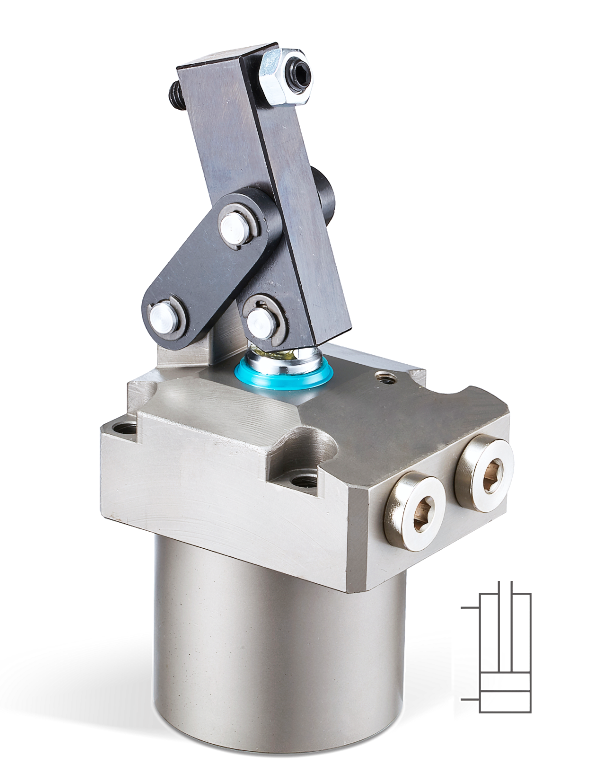

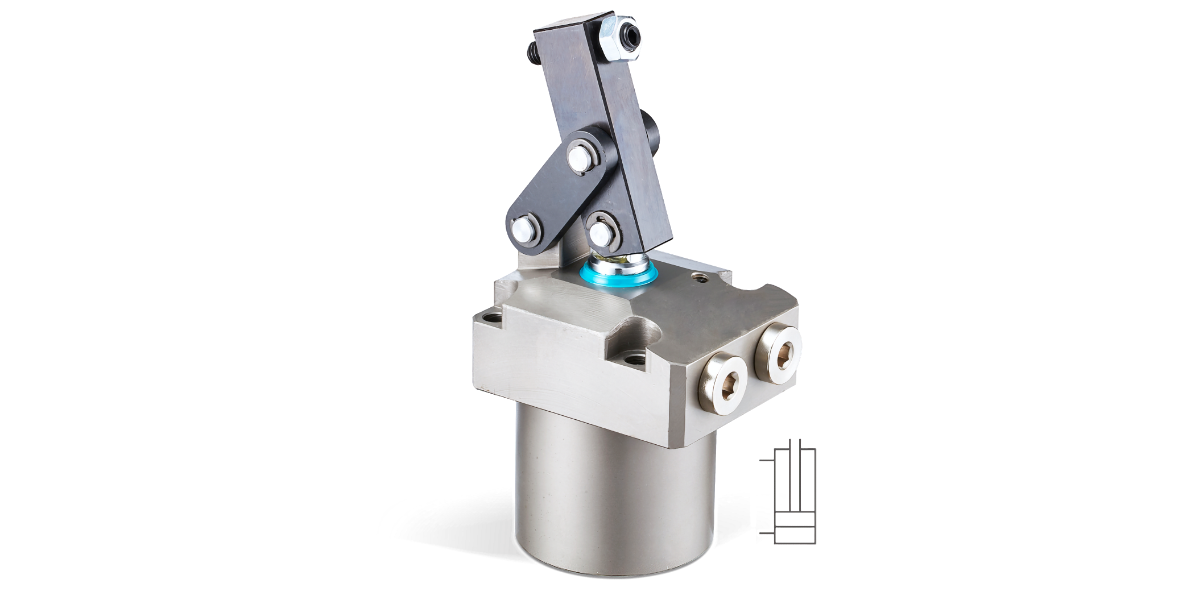

HLKP-Series Hydraulic Link Clamp

HLKP Hydraulic Link Clamp - double acting

very compact series with low flange design
suitable especially for compact and light fixtures with high clamping forces.
double acting type
High clamping forces 2,7kN up to 31kN
Clamping force depends on the clamp arm length and hydraulic pressure
complete with clamping arm and screw
Use flow control valve for meter-in control.
Min. operating pressure : 10bar
Max. operating pressure : 70bar
Range of Temperature : -10 ~ +70°C
various sizes and optional in manifold type with O-Ring (Y) or line type with G-port piping (G)

➝ CAD-files and prices on Request !

Ordering Indication: HLKP - 040 R

Series – Size – Lever direction

①	HLKP	SERIES	HLKP
②	32	Body size	040 / 048 / 055 / 065 / 075 / 105
③	L	Lever direction	Blank: Standard front side (with G Thread Port) R: Right side L: Left side

Model	Clamping force at 70 bar	Clamping stroke	Total stroke	Oil capacity Clamp	Oil capacity Unclamp	eff. piston area clamp	eff. piston area unclamp	CAD
Model	[kN]	[mm]	[mm]	[cm³]	[cm³]	[cm²]	[cm²]	CAD
HLKP-040	2,83	17,5	20,5	7,7	10	3,77	4,9
HLKP-048	3,91	20,5	23,5	13	16,7	5,56	7,1
HLKP-055	4,86	23	26	21	25	8,06	9,6
HLKP-065	8,14	26,5	29,5	38,9	44,8	13,2	15,2
HLKP-075	13,46	33	36	74,5	88,6	20,66	24,6
HLKP-105	20,20	42	45	145,5	173,3	32,35	38,5

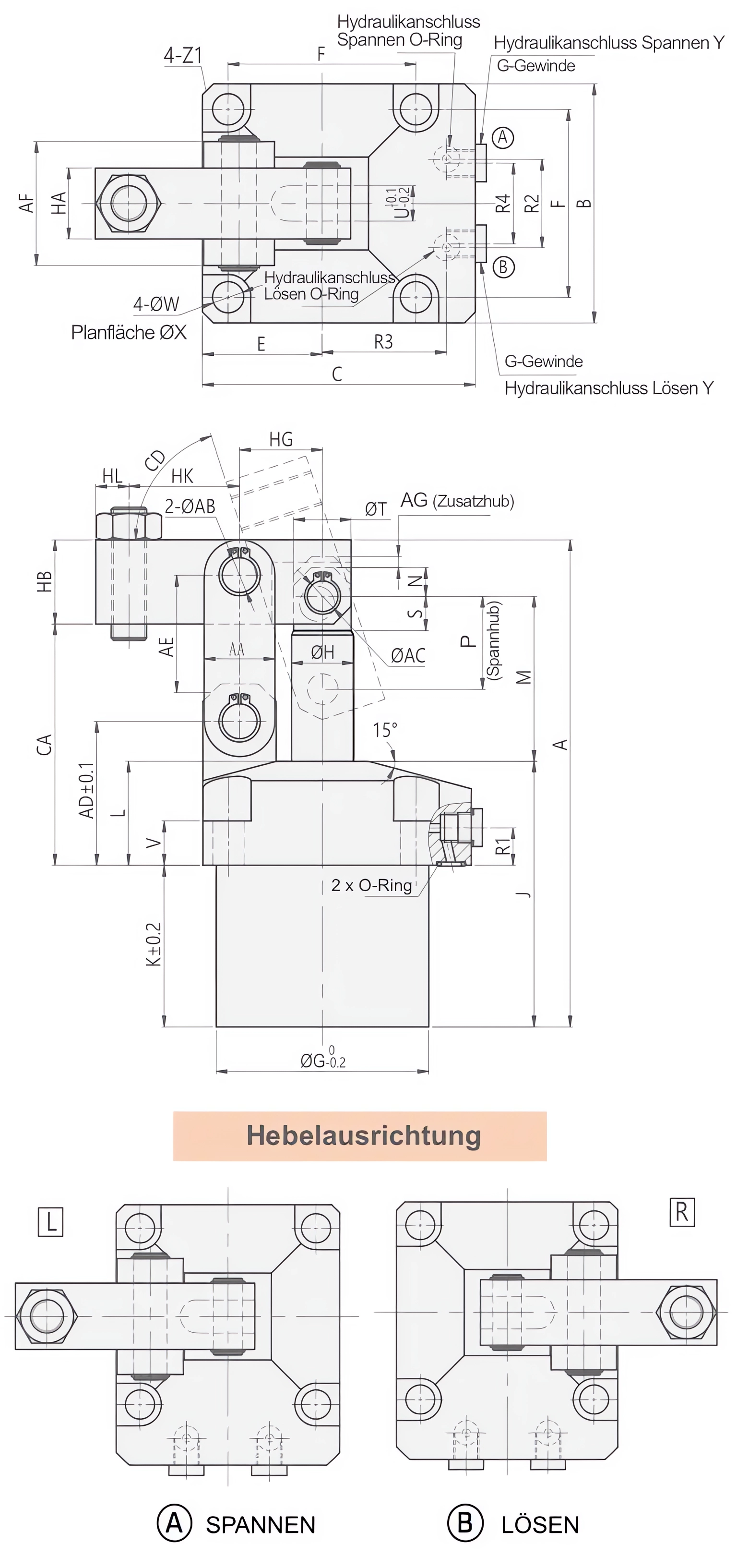

Model	A	B	C	E	F	G	H	J	K	L	M	N	P	Q	R1	R2	R3	R4	S	T	U	V	W	X	Y	Z1	Q1	O-Ring	AA	AB	AC	AD	AE	AF	AG	BC	CA	CB	CC	CD	HA	HB	HG	HK	HL
HLKP-040	97	45	55	22.5	35	39	12	60	33.5	26.5	28.5	5	17.5	2	12.5	22	25	20	6.5	10	6	18	5.5	10	G1/8	C1.5	Ø13.5	P7	11	6	6	34	24	21	3	4	49.5	48	80.2	69°	12	14	16.5	120	6
HLKP-048	108	50	60	25	40	47	14	66	39.5	26.5	32	6	20.5	2	12.5	24	28	22	7	12	6	17	5.5	10	G1/8	C2.5	Ø16	P7	13	6	6	36	26	21	3	4	52.5	59.6	92.5	71°	12	16	18.5	23.5	6
HLKP-055	119.5	57	66	28.5	46	53	14	71	42.5	28.5	34.5	6	23	2	12.5	28	30.5	26	7	12	8	17	6.8	12	G1/8	C2.5	Ø23	P7	15	8	6	39	30	28	3	4	57	67.3	101.3	70°	16	20	21	29	8
HLKP-065	140	70	82	35	56	63	16	83	47	36	40	8	26.5	2	14	36	36	30	9	14	10	20	9	15	G1/4	C3	Ø28	P8	19	10	8	48	35.5	37	3	6	68	78.7	120.4	70°	19	25	24.5	32	10
HLKP-075	166	86	96	43	68	78	22.4	95	55	40	49	11	33	2.5	14	45	42	38	10.8	20	11	20	11	18.5	G1/4	C3.5	Ø33.5	P8	25	14	12	54.5	44	46	3	6	80	98.2	144.7	69°	22	31	30.5	39	11
HLKP-105	199	108	120	54	88	100	28	112	65	47	61.5	13	42	2.5	21	50	57	50	14.5	26	16	20	14	20	G3/8	C5.5	Ø53	P10	32	16	14	65	53	56	3	8	96	133.5	189.2	72°	32	38	37.5	50	15
