PSF-Series Pneumatic Swing Clamp (Top Flange type)
Pneumatic Swing Clamp, Top Flange, Threaded Body
- Swing clamp cylinder in a small, compact design
- Material: Body made of aluminum alloy
- Lightweight, robust, and reliable with a long service life
- Top flange version for flush mounting in fixtures
- Various mounting options thanks to the threaded body and flange holes
- Clamping forces from 0.24 kN to 1.96 kN
- Supplied complete with clamping arm
- Double-acting
- Operating pressure: 4 to 7 bar
- Operating temperature: -10 to +60 °C
Note :
- Medium : Filtered and oiled compressed air must be used !
- Replaces, among others, the NPSU series from Clamptek.
- Short delivery times!
Product Datasheet (Download)
Ordering Indication : PSF-L40-90
| ① | SERIES | PSF | |
| ② | Lever direction | R : Right turn (clockwise direction) L : Left turn (counter-clockwise direction) |
|
| ③ | Size/Cylinder inside diameter | ø25, ø32, ø40, ø50, ø63 | |
| ④ | Rotating angle | Standard angle : 90° (±2°) optional angles : 0°, 45° (±2°), 60° (±2°) Special angles on request. |

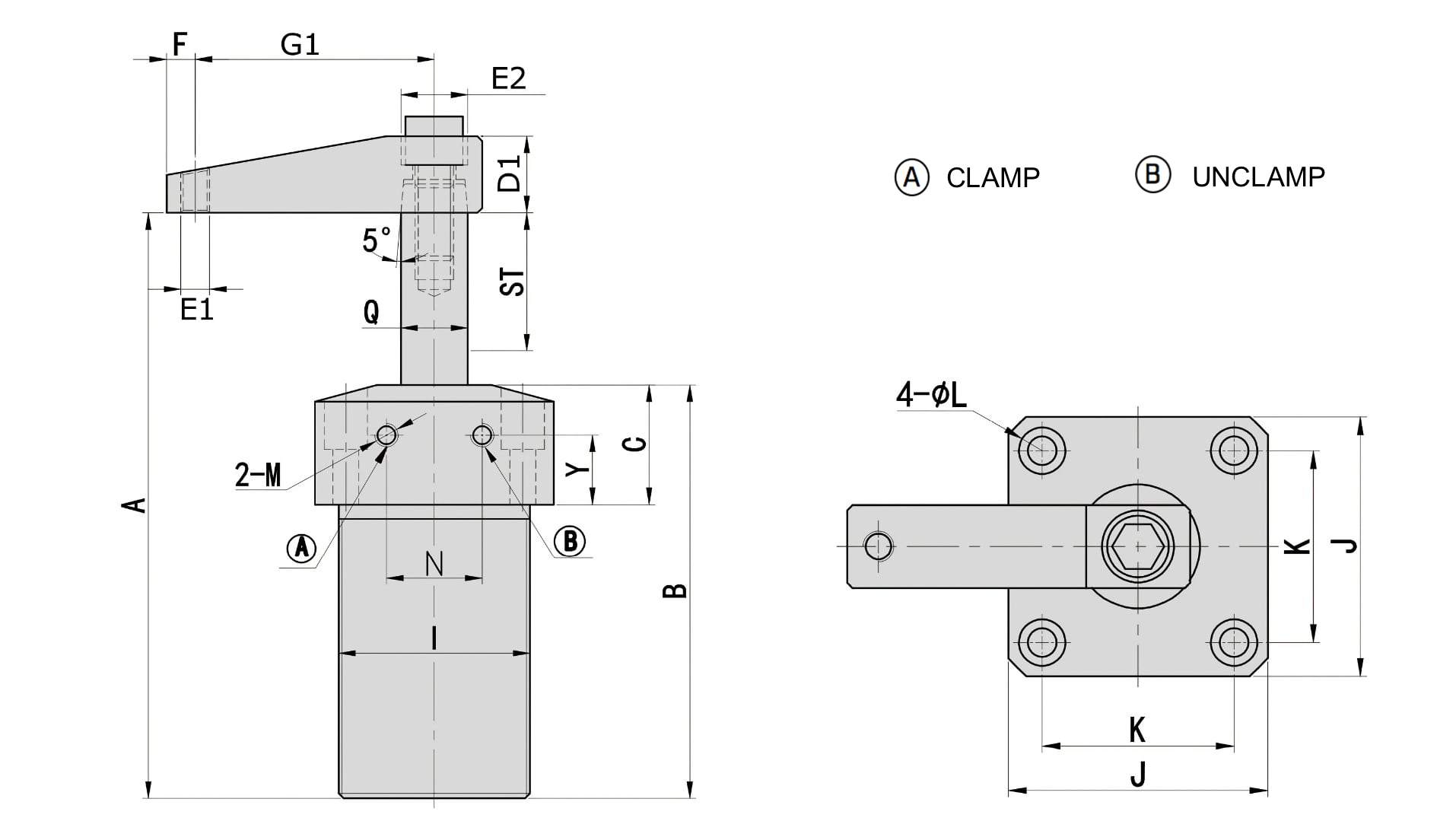

| MODELL | ST：Swing/ clamping | A Unclamp | B | C | D1 | E1 | G1 | F | M | E2 | K | J | I | O | L | Y | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSF-25 | 27:13/14 | 118,5 | 86,5 | 25 | 16 | M6 | 50 | 6 | M5 | M8 | 37 | 50 | M40×1.5 | 20 | Φ5.5-Φ9*5.5D | 14,5 | Φ14 |
| PSF-32 | 30:16/14 | 133,5 | 97,5 | 25 | 19 | M8 | 60 | 9 | PT1/8 | M8 | 45 | 60 | M50×1.5 | 22 | Φ6.5-Φ10.5*6.5D | 13 | Φ16 |
| PSF-40 | 30:15/15 | 133,5 | 97,5 | 25 | 19 | M8 | 70 | 9 | PT1/8 | M8 | 50 | 65 | M55×1.5 | 26 | Φ6.5-Φ10.5*6.5D | 13 | Φ16 |
| PSF-50 | 32:17/15 | 141 | 104 | 25 | 25 | M12 | 80 | 10 | PT1/8 | M10 | 58 | 75 | M65×1.5 | 32 | Φ8.5-Φ14*9D | 11 | Φ20 |
| PSF-63 | 30:15/15 | 140 | 105 | 25 | 25 | M12 | 90 | 10 | PT1/8 | M10 | 70 | 90 | M80×1.5 | 35 | Φ8.5-Φ14*9D | 11 | Φ20 |
