M21 Horizontal toggle clamp with vertical base and open clamping arm
- Galvanized and zinc-plated quality steel
- optional also available in stainless steel, suitable for use in food and pharmaceutical processing industry (Article No : 21P)
- Rivets of stainless steel and hardened bushings
- Bearings and bushings are greased/pre-lubricated
- Oil resistant, ergonomic red handles
- size 3 is optional available with safety latch (Article No : 21S)
- Safety mechanism with finger protection and for higher operator security
- Hardened and galvanized, quick adjustable clamping screws are provided by a retrainer
- Oil- and heat resistant rubbcer cap
Note :

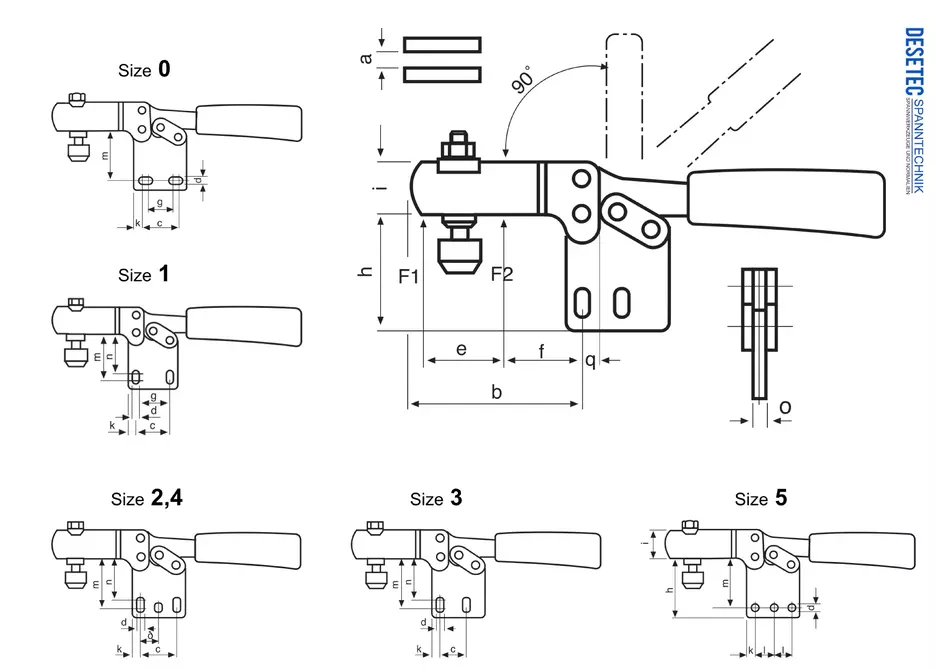

- CAD-files easy and quick to download (see dimension table) !
Product Data & Variants
Order
No. |
Size |
F1 |
F2 |
Total
Height |
Total
Length |
Clamping
screw |
Weight |
Price |
CAD |
PDF |
| [kN] | [kN] | [mm] | [mm] | [M x L] | [g] | [EUR] |
| M21-0 |
0 |
0.25 |
0.4 |
32 |
85 |
M4 x 25 |
37 |
9.90 €
|
|
|
| M21-1 |
1 |
0.8 |
1.1 |
42 |
128 |
M5x30 |
120 |
10.90 €
|
|
|
| M21-2 |
2 |
1 |
1.2 |
59 |
158 |
M6 x 35 |
186 |
14.30 €
|
|
|
| M21-3 |
3 |
1.8 |
2.5 |
63 |
221 |
M8 x 45 |
350 |
15.85 €
|
|
|
| M21-4 |
4 |
2 |
3 |
96 |
293 |
M8 x 65 |
736 |
22.90 €
|
|
|
| M21-5 |
5 |
3 |
5 |
93 |
330 |
M8 x 65 |
1166 |
32.50 €
|
|
|
| Order-No. | b | b1 | c | d | e | f | g | f1 | h | k | l | l1 | m | n | s | s1 | CAD |
|---|
| M21-0 |
25 |
18.5 |
4 |
4.1 |
11 |
11 |
11 |
10 |
- |
16.2 |
24 |
7 |
- |
21 |
4 |
3 |
|
| M21-1 |
40 |
28 |
5.5 |
5.2 |
24 |
26 |
- |
11 |
- |
23.5 |
32 |
10 |
25 |
28 |
5 |
5 |
|
| M21-2 |
51 |
32 |
6 |
5.4 |
- |
28 |
- |
12 |
13 |
26 |
46 |
13.5 |
38 |
43 |
6 |
5 |
|
| M21-3 |
72 |
43 |
7 |
6.5 |
- |
44 |
- |
22 |
- |
25.5 |
49 |
15 |
38 |
43 |
8 |
6 |
|
| M21-4 |
111 |
49 |
8 |
8.5 |
- |
66 |
- |
34 |
20.5 |
41 |
66 |
20 |
53 |
60 |
10 |
8 |
|
| M21-5 |
120 |
64 |
7 |
8.5 |
10 |
78 |
- |
10 |
26 |
52 |
68 |
25 |
12 |
60 |
12 |
22 |
|
