Stainless Steel Vertical toggle clamp with horizontal base (Inox)

  • Material : stainless steel, suitable for use in food and pharmaceutical processing industry
  • optional also available in zinc-plated steel (Article No : 10)
  • Rivets of stainless steel and hardened bushings
  • Bearings and bushings are greased/pre-lubricated
  • Oil resistant, ergonomic red handles
  • sizes 3 and 4 are optional available in steel with safety latch (Article No : 10S)
  • Safety mechanism with finger protection and for higher operator security
  • Hardened and galvanized, quick adjustable clamping screws are provided by a retrainer
  • Oil- and heat resistant rubber cap
Note :
  • Available with stainless steel tubular handle upon request, even for small quantities.
  • Also available in zinc-plated steel version (M10)
  • e.g., alternative suitable for 6800NI
  • CAD-files easy and quick to download (see dimension table) !

Product Data & Variants

Order
No.		 Size F1 F2 Total
Height		 Total
Length		 Clamping
screw		 Weight Price CAD PDF
[kN][kN][mm][mm][M x L][g][EUR]
M10P-1 1 0.8 1.1 109 60 M5 x 30 130 on request
M10P-2 2 1 1.2 135 78 M6 x 35 202 on request
M10P-3 3 1.8 2.5 190 112 M8 x 45 443 on request
M10P-4 4 2 3 230 140 M8 x 65 740 on request

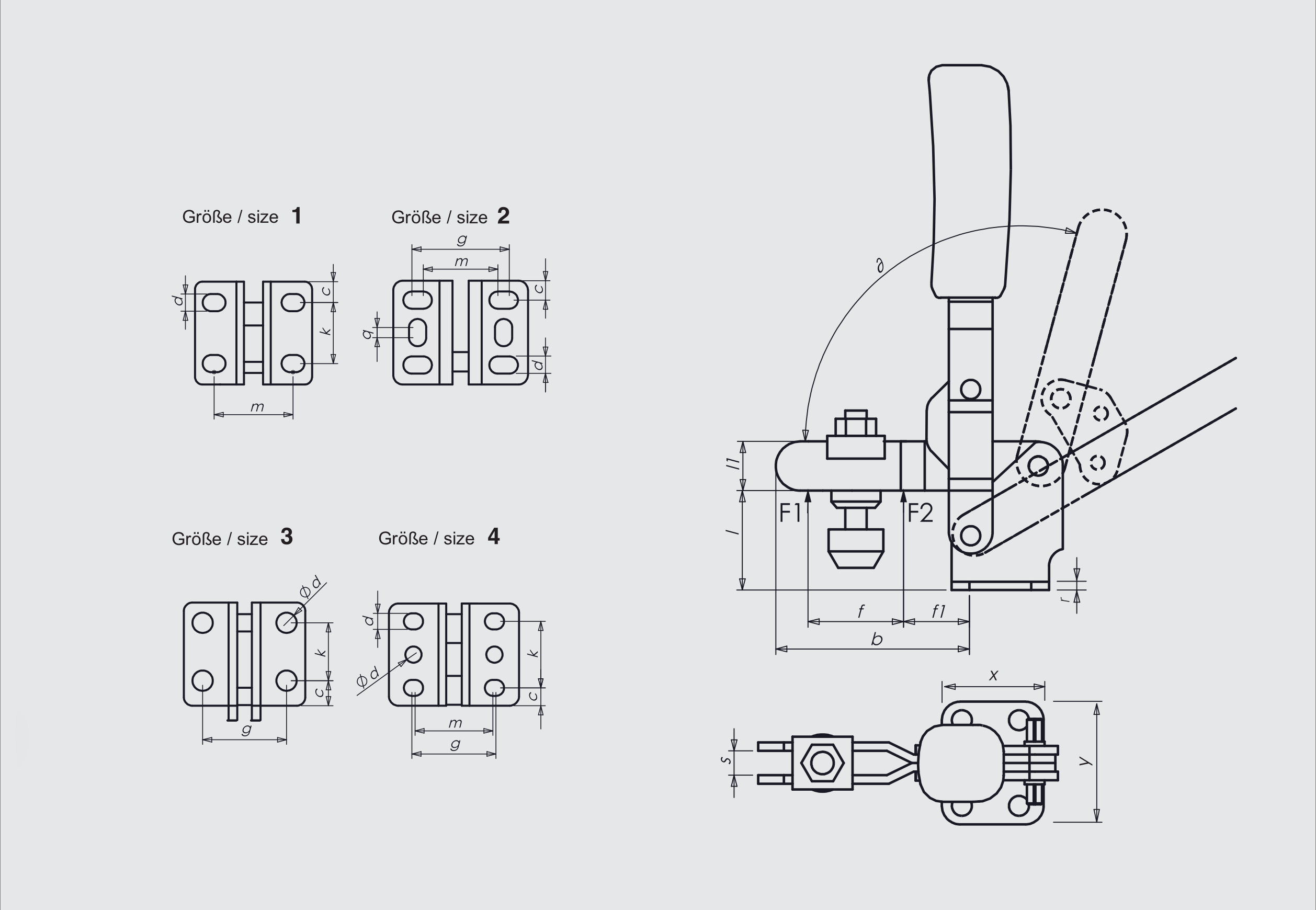

M10P Technical Drawing Vertical toggle clamp with horizontal base stainless steel
Order-No.Sizebcdff1gkll1msqrxy∂CAD
M10P-1 1 41 5.5 4.5 19 11 - 16 19.5 10 26.5 5.5 - 2.5 26 37 88°
M10P-2 2 51 6 5.3 24 10 30 20 26 12 23 6.2 3  2.5 32 42 100°
M10P-3 3 72 7.5 7 29 27 32 20 36 18 - 8.5 - 3 35.5 45 105°
M10P-4 4 101 9.25 8.5 61 30 42 34.5 48 20 39 9 - 3.5 53 65 105°

MS10/20 Clamping screw with rubber cap

Schnellspanner accessoiry - Clamping screw with rubber cap
A : with removable protective black cap ( 2 separate parts)
B : with removable protective red cap ( 2 separate parts)
C : red rubber cap and screw are one part (1 part)

MS10/20 Clamping screw with cap

  • tempered, galvanised and passivated
  • with removable protective cap
  • complete with washer/nut element
  • also available in stainless steel
  • modifications in customized length possible
SizeMxL1hLWeight
[g]
0 M4x25 18.5 31 7.70
1 M5x30 22 38 13.80
2 M6x35 25 43 19.80
3 M8x45 29 57 44.20
4 M8x65 47 77 63.30
5 M12x80 56 97 165.40

MS10/22 - MS10/23 - MS10/24 Self-aligning clamping screw - for Toggle Clamps

Self-aligning clamping screw Toggle Clamp accessoiry
MS10/22 : self-aligning, ribbed clamping surface
MS10/23 : self-aligning, plain clamping surface
MS10/24 : self-aligning, V-groove clamping surface

MS10/22 MS10/23 MS10/24 Self-aligning clamping screw

  • tempered, galvanized and passivated
  • complete with washer/nut-element
  • also available in stainless steel
  • modifications in customized length possible
GrößeMxLABC
2 M6x53.3 53.3 13 Ø16
3 M8x64.5 64.5 17 Ø20
4 M10x86 86 21 Ø26.5
5 M12x98 98 24 Ø30

MS10/30 Supporting arm - for Toggle Clamps

MS10/30 Supporting arm for toggle clamps

  • Galvanized and passivated
  • complete with two tempered clamping screws and fastening screw
  • also available in stainless steel
Supporting arm for toggle clamps
SizeScrewDistance
between
screws		Length
[mm]		Weight
[g]
1 M5x30 22-72 85 65
2 M6x35 28-85 100 90
3 M8x45 34-100 120 200
4 M8x65 40-125 150 370
5 M8x65 40-125 150 370
Item-No.
toggle clamp		 suitable size
0 1 2 3 4 5 6
M10 - 1 2 3 4 - 5
M11 - 1 2 3 4 - 5
M12 - 1 2 3 4 - 5
M20 - 1 2 3 4 5 -
M21 - 1 2 3 4 5 -
M22 - - - 3 - - -

MS10/15 Rubber nose

Rubber Nose - Toggle Clamps accessoiry

MS10/15 Rubber nose

  • Made of oil resistant neoprene
  • to prevent damage to delicate components
  • for placement on hexagon screw head
  • optional available in red or black color
SizeMDHGewicht
[g]
0 M4 11 8.5 1
1 M5 12 9 1
2 M6 15 11.5 2
3 M8 19 14 4
4 M10 24 17 6
5 M12 25 20 8

MS10/16 Optional Handles - for Toggle Clamps

Handles - Toggle Clamp Acessoiry

MS10/32 Clamping arm extension

MS10/32 Clamping arm extension for toggle clamps

MS10/32 Clamping arm extension

  • Made from lightweight aluminum
  • Drilled and tapped for clamping schrews
  • Easily cut to length
  • Complete with fastening bolt. Without clamping screw.
  • Similar to 6899 or L-200-4
SizeBB1B2B3B4LL1L2L3L4L5L6M
2 12 6.5 9 12 2x45° 127 110 35 48 15 75 10 M5
3 15 8.5 12 15 2x45° 167 150 45 73 15 105 10 M5
4 17 9 16 20 2x45° 220 200 45 73 15 105 10 M8

MS10/34 Length adapter for horizonzal bridging - for Toggle clamps

Length adapter for horizonzal bridging- for Toggle clamps

MS10/34 Length adapter for toggle clamps

  • Made from lightweight aluminum
  • Used in conjunction with Height Adapters and Clamping Arm Adapters
  • Easily cut to length-easy handling
  • Supplied with mounting screw
SizeBB1B2B3B4ØDØD1ØD2LL1L2L3L4M
2 12 6.5 9 12 2x45° 5.5 10 6 95 70 15 48 6 M5
3 15 9 12 15 2x45° 5.5 10 6 95 70 15 48 6 M5

MS10/35 Length adapter for horizonzal bridging - for Toggle clamps

Length adapter for horizonzal bridging - for Toggle clamps

MS10/35 Length adapter for toggle clamps

  • Made from lightweight aluminum
  • Use with clamps, length adapters, and arm adapters
  • Made from lightweight aluminum
  • easy handling
  • similar to L-200-2
SizeØDØD1ØD2LL1L2L3SWM
2-3 10 6 6 62
82		 35
65		 8 12 8 M5

MS10/36 Clamping arm adapter - for Toggle clamps

Schnellspanner Zubehör - MS10/36 Clamping arm adapter for toggle clamps

MS10/36 Spannarmadapter für Handspanner

  • Made from lightweight aluminum
  • Use with length and height adapters
  • Flexible adjustment of the clamping points
  • Drilled and tapped for clamping schrews
  • supplied with several holes for asymmetric clamping
  • Werkstoff : Aluminium
  • similar to L-200-3
GrößeBB1B2B3B4B5øDLL1L2L4L5L6M
2 10 6 20 8 12 92 6 60 51 32 15 15 10 M5
