DST-12280 Vertical acting toggle clamp 3400N - DESETEC SPANNTECHNIK

DST-12280 Vertical acting Hold-Down Toggle Clamp with vertical mounting base 3400N

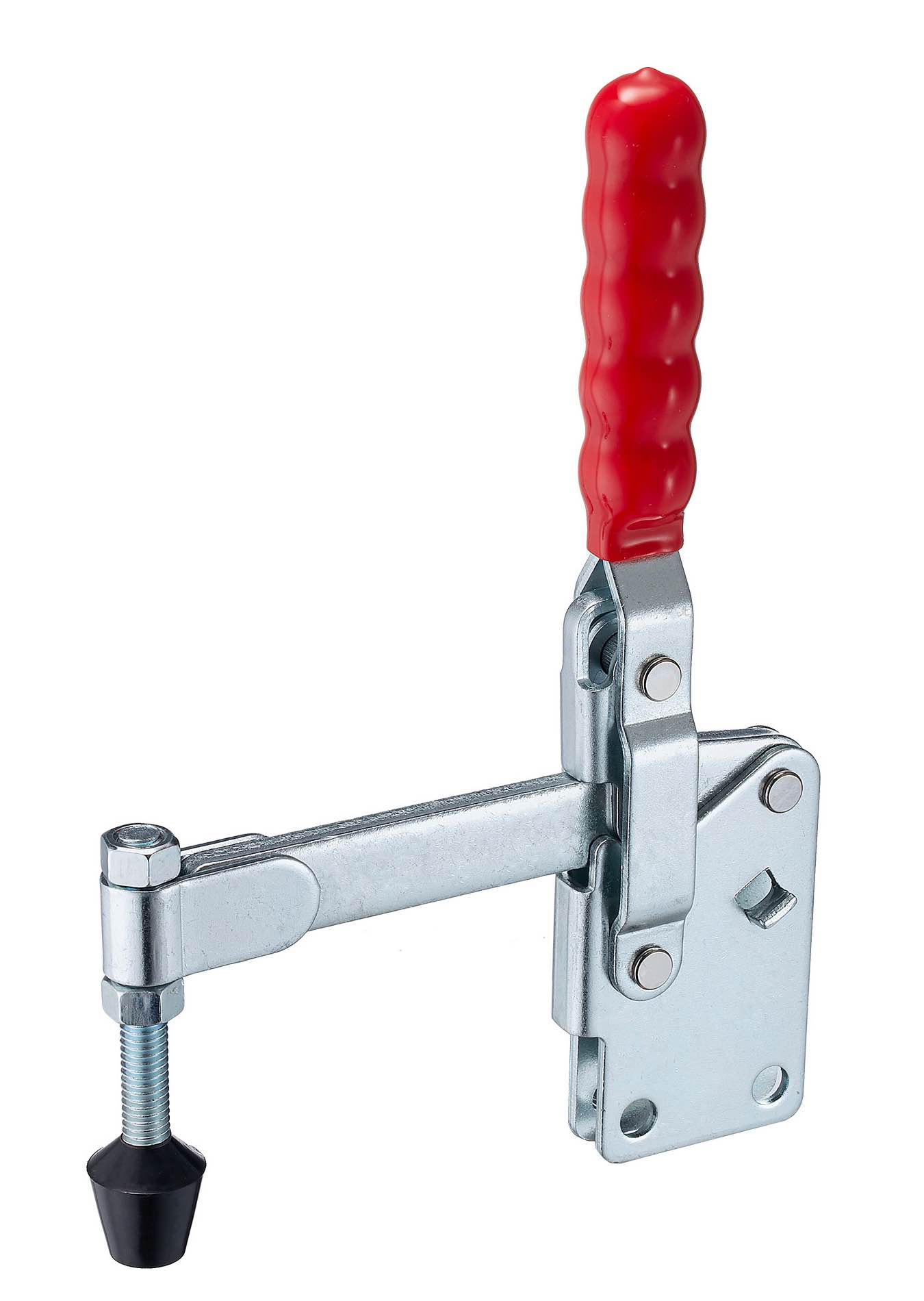

DST-12280 Vertical acting Hold-Down Toggle Clamp with vertical mounting base, solid bar 3400N

Vertical acting toggle clamp with vertical base and solid bar :

Solid Bar
Bar Opens : 105°
Handle Opens : 58°
with clamping screw, washer and nut element
Holding Capacity : 3400N
Weight : 635g
Material: galvanic, zinc-plated high quality steel
Hand grips designed for high user comfort

Note :

e.g. suitable for 210-SB, etc.
CAD-files and prices on Request !

Technical Specifications
Item-Number	DST-12280
Max. holding force (N)	3400
Height under clamping arm (mm)	67
Overall height (mm)	230
Total length (mm)	140.2
Clamping arm length (mm)	84.4
Clamping arm opening angle °	105
Handle opening angle °	58
Safety interlock	Nein
Clamping screw	FC-38312
Base alignment	flat base
Version	Normal
Weight (g)	635
Order number	DST-12280
Series	DST
Price from	on request
