M11L Vertical toggle clamp with vertical base and solid clamping arm

M11L Vertical toggle clamp with vertical base and solid clamping arm

M11L Vertical toggle clamp with vertical base and solid clamping arm

Vertical toggle clamp with vertical base and solid clamp arm

  • Galvanized and zinc-plated quality steel
  • Rivets of stainless steel and hardened bushings
  • Bearings and bushings are greased/pre-lubricated
  • Oil resistant, ergonomic red handles
  • Safety mechanism with finger protection and for higher operator security
  • Hardened and galvanized, quick adjustable clamping screw
  • Oil- and heat resistant rubber cap
Note :
  • e.g. suitable for 6802 etc...
  • CAD-files on request !

Product Data & Variants

Order
No.		 Size F1 F2 Total
Height		 Total
Length		 Clamping
screw		 Weight Price CAD PDF
[kN][kN][mm][mm][M x L][g][EUR]
M11-2 2 0.8 1.2 153 76 M6 x 35 165 on request -
M11L-3 3 1.8 2.5 210 105 M8 x 45 400 on request -
M11-4 4 2 3 255 140 M8 x 65 677 on request -
M11L-5 5 3 5 323 190 M12 x 80 1330 on request -

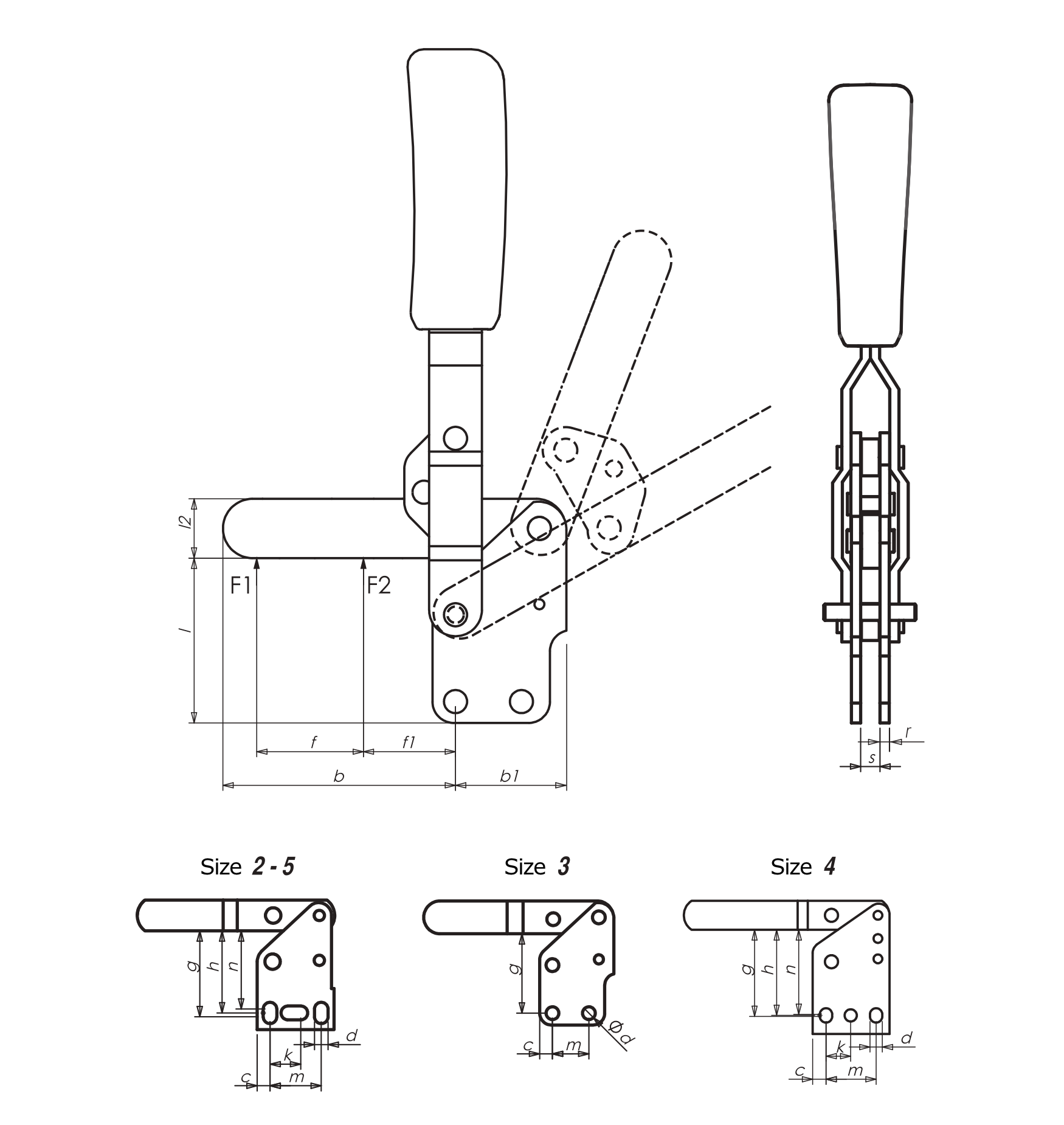

M11L Technical Drawing Vertical toggle clamp with vertical base and solid clamping arm
Order-No.Sizebb1cdff1ghkll1mnrs∂
M11L-2 2 51 24 5 5.3 24 10 33 31.5 12 38 12 20 30 2.5 5 100°
M11L-3 3 72 31 7.5 7 29 27 44 - - 50 18 20 - 3 6 105°
M11L-4 4 101 44 9.25 8.5 61 30 60 59 17 71.5 20 34.5 56.5 3.5 8 105°
M11L-5 5 137 56 10.5 8.5 88 40 68 67 25 78 25 45 65.5 5 10 115°

MS10/20 Clamping screw with rubber cap

Schnellspanner accessoiry - Clamping screw with rubber cap
A : with removable protective black cap ( 2 separate parts)
B : with removable protective red cap ( 2 separate parts)
C : red rubber cap and screw are one part (1 part)

MS10/20 Clamping screw with cap

  • tempered, galvanised and passivated
  • with removable protective cap
  • complete with washer/nut element
  • also available in stainless steel
  • modifications in customized length possible
SizeMxL1hLWeight
[g]
0 M4x25 18.5 31 7.70
1 M5x30 22 38 13.80
2 M6x35 25 43 19.80
3 M8x45 29 57 44.20
4 M8x65 47 77 63.30
5 M12x80 56 97 165.40

MS10/22 - MS10/23 - MS10/24 Self-aligning clamping screw - for Toggle Clamps

Self-aligning clamping screw Toggle Clamp accessoiry
MS10/22 : self-aligning, ribbed clamping surface
MS10/23 : self-aligning, plain clamping surface
MS10/24 : self-aligning, V-groove clamping surface

MS10/22 MS10/23 MS10/24 Self-aligning clamping screw

  • tempered, galvanized and passivated
  • complete with washer/nut-element
  • also available in stainless steel
  • modifications in customized length possible
GrößeMxLABC
2 M6x53.3 53.3 13 Ø16
3 M8x64.5 64.5 17 Ø20
4 M10x86 86 21 Ø26.5
5 M12x98 98 24 Ø30

MS10/30 Supporting arm - for Toggle Clamps

MS10/30 Supporting arm for toggle clamps

  • Galvanized and passivated
  • complete with two tempered clamping screws and fastening screw
  • also available in stainless steel
Supporting arm for toggle clamps
SizeScrewDistance
between
screws		Length
[mm]		Weight
[g]
1 M5x30 22-72 85 65
2 M6x35 28-85 100 90
3 M8x45 34-100 120 200
4 M8x65 40-125 150 370
5 M8x65 40-125 150 370
Item-No.
toggle clamp		 suitable size
0 1 2 3 4 5 6
M10 - 1 2 3 4 - 5
M11 - 1 2 3 4 - 5
M12 - 1 2 3 4 - 5
M20 - 1 2 3 4 5 -
M21 - 1 2 3 4 5 -
M22 - - - 3 - - -

MS10/15 Rubber nose

Rubber Nose - Toggle Clamps accessoiry

MS10/15 Rubber nose

  • Made of oil resistant neoprene
  • to prevent damage to delicate components
  • for placement on hexagon screw head
  • optional available in red or black color
SizeMDHGewicht
[g]
0 M4 11 8.5 1
1 M5 12 9 1
2 M6 15 11.5 2
3 M8 19 14 4
4 M10 24 17 6
5 M12 25 20 8

MS10/16 Optional Handles - for Toggle Clamps

Handles - Toggle Clamp Acessoiry

MS10/32 Clamping arm extension

MS10/32 Clamping arm extension for toggle clamps

MS10/32 Clamping arm extension

  • Made from lightweight aluminum
  • Drilled and tapped for clamping schrews
  • Easily cut to length
  • Complete with fastening bolt. Without clamping screw.
  • Similar to 6899 or L-200-4
SizeBB1B2B3B4LL1L2L3L4L5L6M
2 12 6.5 9 12 2x45° 127 110 35 48 15 75 10 M5
3 15 8.5 12 15 2x45° 167 150 45 73 15 105 10 M5
4 17 9 16 20 2x45° 220 200 45 73 15 105 10 M8

MS10/34 Length adapter for horizonzal bridging - for Toggle clamps

Length adapter for horizonzal bridging- for Toggle clamps

MS10/34 Length adapter for toggle clamps

  • Made from lightweight aluminum
  • Used in conjunction with Height Adapters and Clamping Arm Adapters
  • Easily cut to length-easy handling
  • Supplied with mounting screw
SizeBB1B2B3B4ØDØD1ØD2LL1L2L3L4M
2 12 6.5 9 12 2x45° 5.5 10 6 95 70 15 48 6 M5
3 15 9 12 15 2x45° 5.5 10 6 95 70 15 48 6 M5

MS10/35 Length adapter for horizonzal bridging - for Toggle clamps

Length adapter for horizonzal bridging - for Toggle clamps

MS10/35 Length adapter for toggle clamps

  • Made from lightweight aluminum
  • Use with clamps, length adapters, and arm adapters
  • Made from lightweight aluminum
  • easy handling
  • similar to L-200-2
SizeØDØD1ØD2LL1L2L3SWM
2-3 10 6 6 62
82		 35
65		 8 12 8 M5

MS10/36 Clamping arm adapter - for Toggle clamps

Schnellspanner Zubehör - MS10/36 Clamping arm adapter for toggle clamps

MS10/36 Spannarmadapter für Handspanner

  • Made from lightweight aluminum
  • Use with length and height adapters
  • Flexible adjustment of the clamping points
  • Drilled and tapped for clamping schrews
  • supplied with several holes for asymmetric clamping
  • Werkstoff : Aluminium
  • similar to L-200-3
GrößeBB1B2B3B4B5øDLL1L2L4L5L6M
2 10 6 20 8 12 92 6 60 51 32 15 15 10 M5
