DST-101-JSI Vertical acting toggle clamp 5500N

DST-101-JSI Vertical acting Hold-Down Toggle Clamp with vertical mounting base and solid bar 5500N

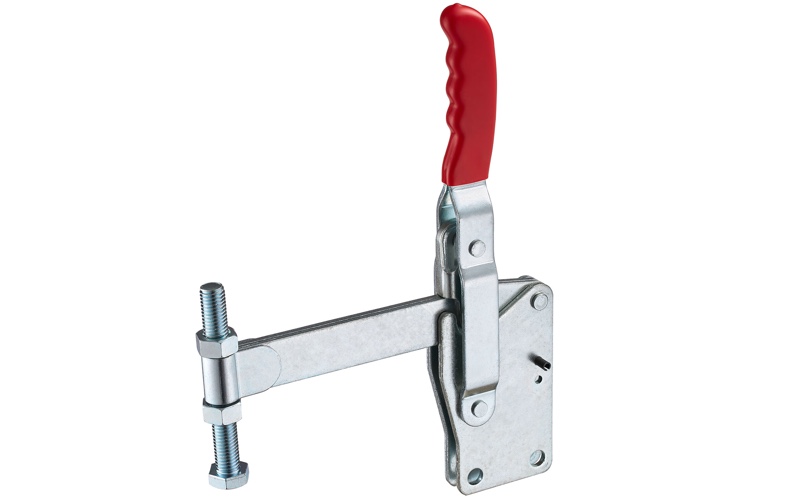

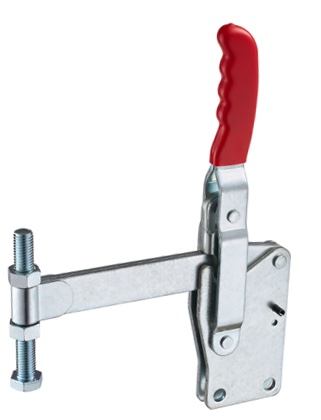

Vertical acting toggle clamp with vertical base and solid bar :

• Solid clamping Bar
• Bar Opens : 100°-140°
• Handle Opens : 48°-60°
• with clamping screw, washer and nut element
• Holding Capacity : 5500N
• Weight : 2540g
• Material: galvanic, zinc-plated high quality steel
• Hand grips designed for high user comfort

Note :

• e.g. suitable for 267-SB, etc.
• CAD-files and prices on Request !

Technical Specifications
Item-Number	DST-101-JSI
Material	galvanized steel
Max. holding force (N)	5500
Height under clamping arm (mm)	115
Overall height (mm)	343
Total length (mm)	235.3
Clamping arm length (mm)	158.8
Clamping arm opening angle °	100
Handle opening angle °	48
Safety interlock	Nein
Clamping screw	SA-58500
Base alignment	straight base
Version	Normal
Weight (g)	2540
Order number	DST-101-JSI
Series	DST
Price from	on request

Show all technical data

Technical Drawing and Dimensions in [mm]
