DST-12050-U Vertical acting toggle clamp 910N

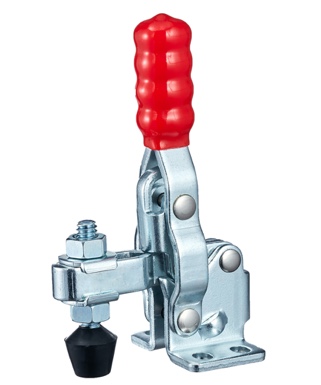

DST-12050-U Vertical acting Hold-Down Toggle Clamp with horizontal mounting base and U-Bar 910N

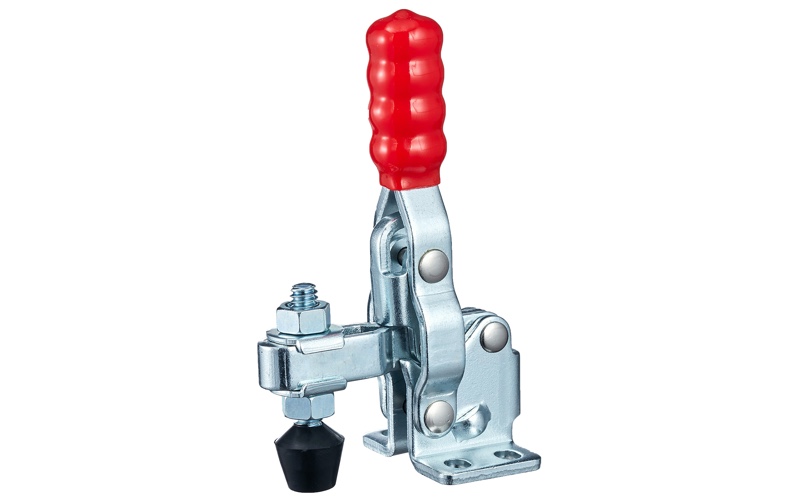

Vertical acting Hold-Down Toggle Clamp with horizontal base and U-clamping bar

• Compact series
• Holding Capacity : 910N
• Adjustable U- bar
• Bar Opens : 100°, Handle Opens : 60°
• with clamping screw, washer and nut element
• Weight : 170g

Note :

• Material: galvanic, zinc-plated high quality steel
• Hand grips designed for high user comfort
• Also available in Stainless Steel (DST-12050-USS)
• e.g. suitable for 202-U, etc..
• CAD-files and prices on request !

Technical Specifications
Item-Number	DST-12050-U
Material	galvanized steel
Max. holding force (N)	910
Height under clamping arm (mm)	22.7
Overall height (mm)	105
Total length (mm)	62.8
Clamping arm length (mm)	33.3
Clamping arm opening angle °	100
Handle opening angle °	60
Safety interlock	Nein
Clamping screw	FC-14134
Base alignment	flat base
Version	Normal
Weight (g)	170
Order number	DST-12050-U
Series	DST
Price from	on request

Show all technical data

Technical Drawing and Dimensions in [mm]
