DST-12070 Vertical acting toggle clamp 910N - DESETEC SPANNTECHNIK

DST-12070 Vertical acting Hold-Down Toggle Clamp with T-Handle horizontal mounting base solid bar 910N

DST-12070 Vertical acting Hold-Down Toggle Clamp with T-Handle horizontal mounting base solid bar 910N

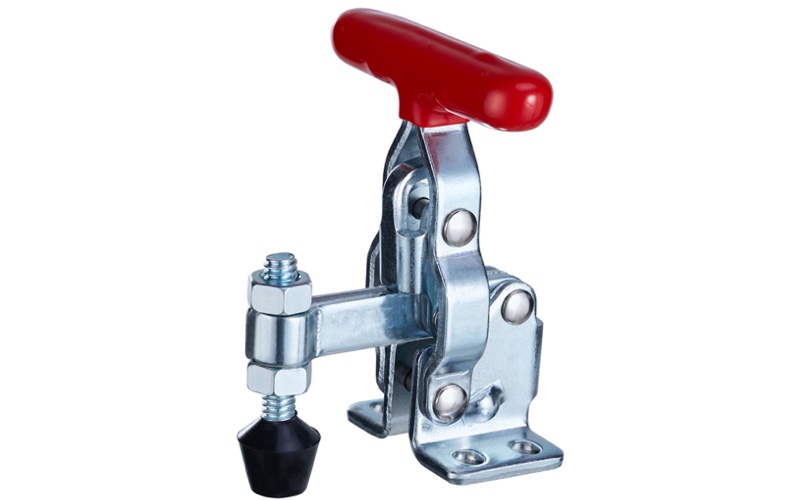

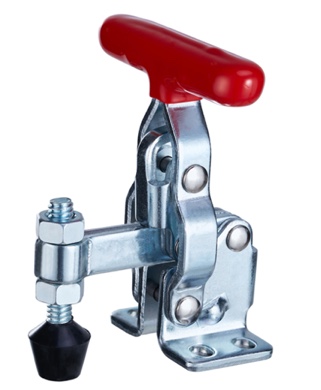

Vertical acting toggle clamp with horizontal base and T-Handle :

Compact series with low profile T-Handle
Holding Capacity : 910N
solid bar, standard length
Bar Opens : 100°, Handle Opens : 60°
with clamping screw, washer and nut element
Weight : 170g

Note :

Material: galvanic, zinc-plated high quality steel
Hand grips designed for high user comfort
CAD-files and prices on request !

Technical Specifications
Item-Number	DST-12070
Material	galvanized steel
Max. holding force (N)	910
Height under clamping arm (mm)	22.7
Overall height (mm)	81
Total length (mm)	62.8
Clamping arm length (mm)	33.3
Clamping arm opening angle °	100
Handle opening angle °	60
Safety interlock	Nein
Clamping screw	FC-14134
Base alignment	flat base
Version	Normal
Weight (g)	170
Order number	DST-12070
Series	DST
Price from	on request

DST-12070 Technical Drawing Vertical acting Hold-Down Toggle Clamp with T-Handle horizontal mounting base solid bar 910N

DST-SERIES Toggle Clamps Accessories
