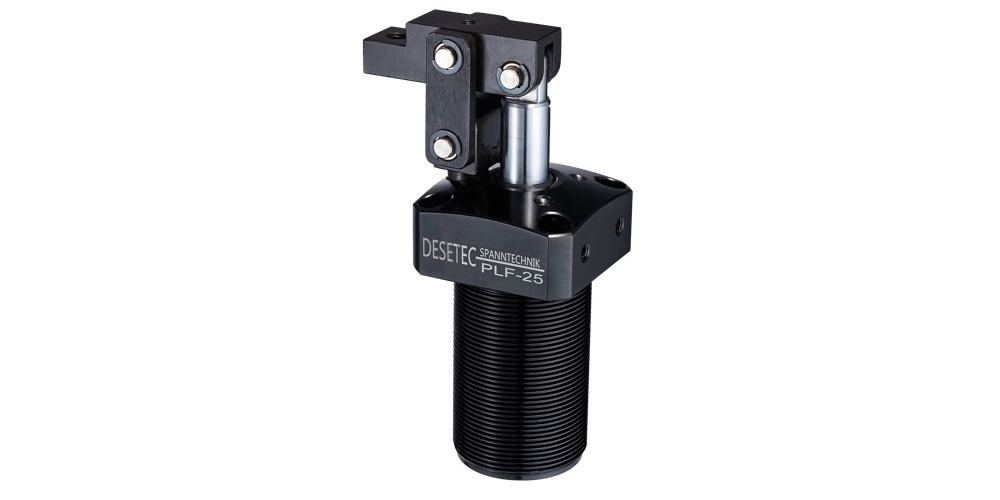

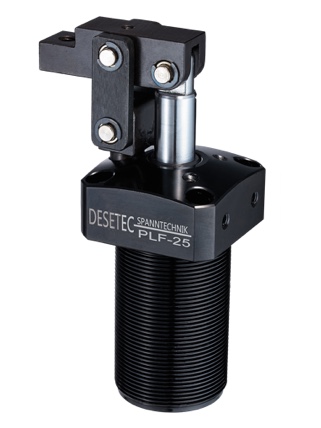

PLF-Series Pneumatic Link Clamp (Flange type)

PLF Pneumatic Link Clamp - Threaded Body with Top Flange

PLF Series Pneumatic Link Clamp (Flange type)
Product Features:
  • Compact pneumatic link clamp with internal toggle mechanism, ideally suited for jigs, fixtures, and tooling applications
  • Clamping forces ranging from 0.27 kN to 1.70 kN
  • Available in cylinder bores: 25, 32, 40, 50, and 63 mm
  • Metric threaded body for stepless height adjustment and flush recessed mounting
  • Versatile mounting options via outer thread (compatible with DIN 70852 locknuts) or top flange through-holes
  • Double-acting operation with high holding-to-size ratio
  • Operating temperature range: −10 to +60 °C
Important Notes:
  • Operating medium: Clean, filtered, oil-free compressed air.
  • Customized modifications are available upon request!
  • High-temperature version available for up to 150 °C!
  • Direct replacement for Clamptek CPLCU, CPLCU-25-V, CLX series, and model 6015
Product Datasheet (Download)
Example Ordering Code: PLF - 40 R
Series – Cylinder Bore ø – Clamping Arm Orientation
① PLF SERIES PLF
② 40 Size / Cylinder Inside Diameter [mm] ø25, ø32, ø40, ø50, ø63
③ R Clamping Arm Mounting Orientation Blank: Standard (Front)
R: Right
L: Left

Configuration & Ordering Notes:

  • Part Code System: Use this code to configure the PLF pneumatic link clamp precisely for your specific fixture layout and mounting setup.
  • Arm Orientation: The clamping lever arm can be ordered pre-assembled in standard orientation (front), or rotated to the right (R) or left (L).

Specifications, CAD Download & Pricing

ModelClamping Force
at 7 bar
[kN]		Clamping Stroke

[mm]		Total Stroke

[mm]		Cylinder Capacity
Clamp | Unclamp
[cm³]		Eff. Piston Area
Clamp | Unclamp
[cm²]		CAD
Download		Prices from

[EUR/pcs.]
PLF-25 0.27 20 24 11.78 | 8.09 4.91 | 3.37 249.00
PLF-32 0.42 28 32 24.92 | 18.69 8.04 | 6.03 275.00
PLF-40 0.67 30 33 41.45 | 34.82 12.56 | 10.55 295.00
PLF-50 1.07 30 33 64.78 | 54.42 19.63 | 16.49 345.00
PLF-63 1.70 30 33 102.83 | 92.47 31.16 | 28.02 395.00

Pricing & Delivery Terms:

  • CAD Downloads: 3D models are available for download in standard STEP format.
  • Prices: All unit prices are listed in Euros (EUR) per piece, excluding statutory VAT and shipping costs.

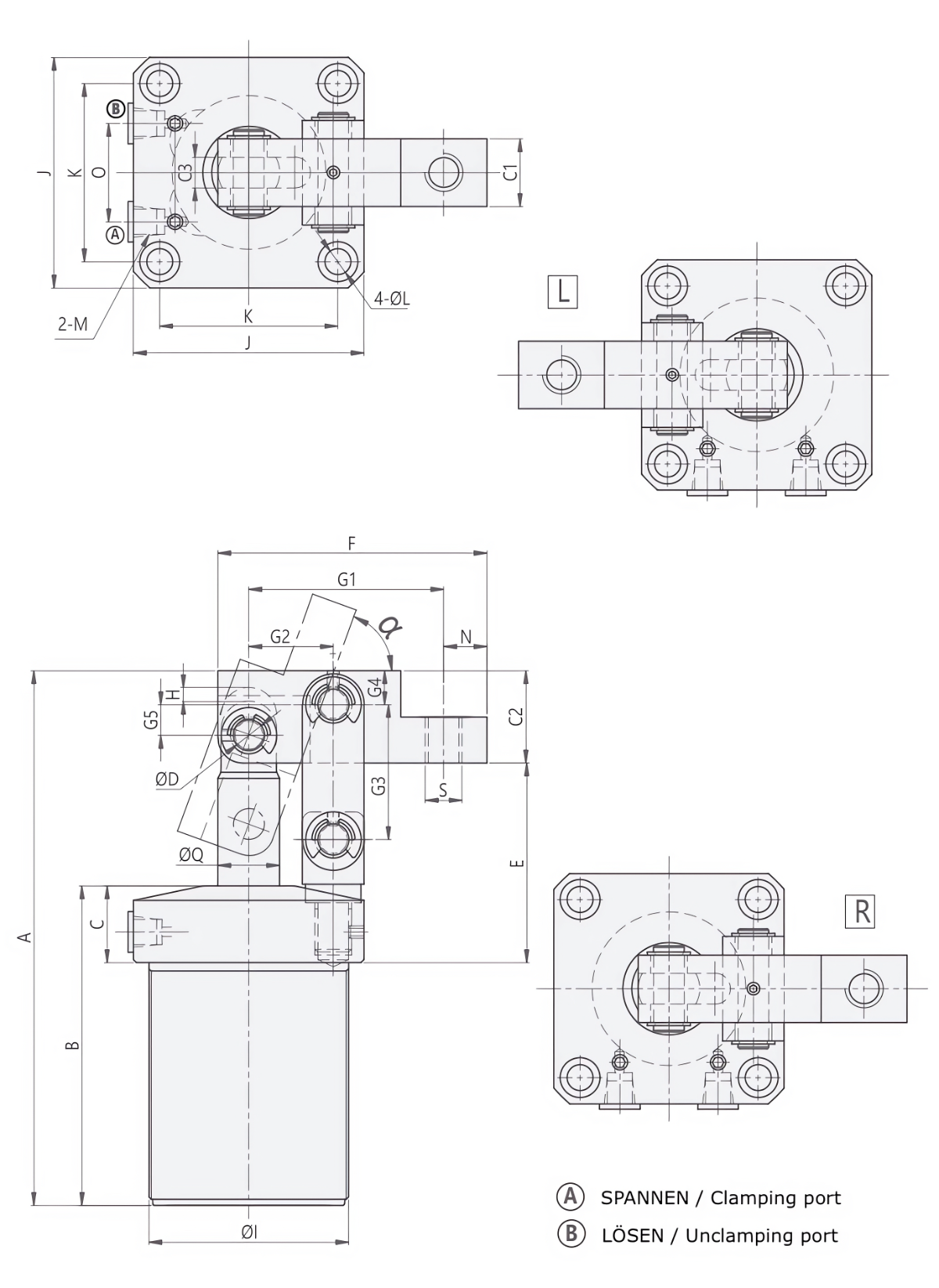

Technical Drawing & Dimensions [mm]

PLF Pneumatic Link Clamp Technical Drawing
ModelABCC1C2C3øDEFG1G2G3G4G5HøIJKL-øL-DepthMNOQSα
PLF-25 128.5 86.5 25 16 17 6 ø6 50 55 41 18 26 6.5 4.5 2 M40x1.5 50 37 ø5.5-ø9 5.5D M5 7 23 ø14 M6 70°
PLF-32 149.5 97.5 25 18 20 8 ø6 57 68 52 22 33 8 5 4 M50x1.5 60 45 ø6.5-ø11 6.5D PT1/8 8 23 ø16 M8 75°
PLF-40 157.5 97.5 25 20 25 8 ø8 60 75 56 24 33 13 4 3 M55x1.5 65 50 ø6.5-ø11 6.5D PT1/8 10 26 ø16 M8 78°
PLF-50 174.0 104.0 25 22 30 10 ø10 65 87.5 63.5 27.5 44 11 10 3 M65x1.5 75 58 ø8.5-ø14 8.5D PT1/8 14 32 ø20 M12 70°
PLF-63 179.0 105.0 25 22 30 10 ø10 69 98 74 32 48 11 10 3 M80x1.5 90 70 ø8.5-ø14 8.5D PT1/8 14 35 ø20 M12 60°

Operating, Mounting & Maintenance Guidelines:

  • Kinematics & Mechanical Linkage: An internal precision toggle linkage converts the linear piston movement into a powerful clamping action of the lever arm, delivering high holding forces within a highly compact housing.
  • Mounting & Adjustment: The outer body thread allows stepless height adjustment and recessed flush mounting into fixture plates. Secure mounting is achieved using a locknut (e.g., DIN 70852) from top/bottom or four socket head cap screws directly through the top flange.
  • Maintenance & Air Quality: Unlike standard competitor models requiring oiled air lines, the PLF series operates 100% maintenance-free and cleanly using dry, filtered, unlubricated compressed air.
