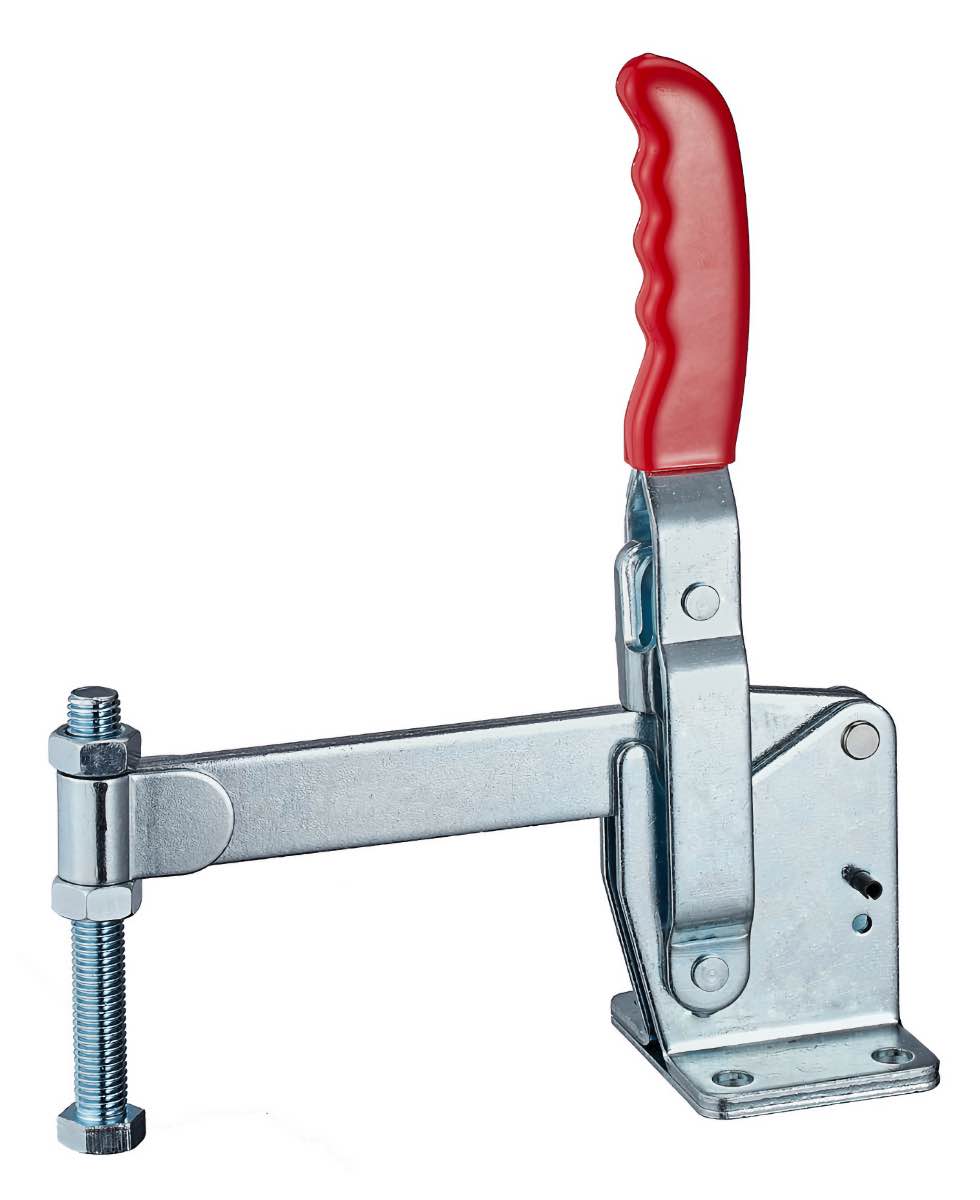

DST-101-JS Vertical acting Hold-Down Toggle Clamp with horizontal mounting base 5500N

DST-101-J Vertical acting Hold-Down Toggle Clamp with horizontal mounting base and solid bar 5500N

Vertical acting toggle clamp with horizontal base and solid bar :

Solid Bar
Bar Opens : 100°-140°
Handle Opens : 48°-60°
with clamping screw, washer and nut element
Holding Capacity : 5500N
Weight : 2540g
Material: galvanic, zinc-plated high quality steel
Hand grips designed for high user comfort

Note :

e.g. suitable for 267-S, etc..
CAD-files and prices on Request !

Technical Specifications
Item-Number	DST-101-JS
Material	galvanized steel
Max. holding force (N)	5500
Height under clamping arm (mm)	83
Overall height (mm)	310
Total length (mm)	235
Clamping arm length (mm)	158.8
Clamping arm opening angle °	100
Handle opening angle °	48
Safety interlock	Nein
Clamping screw	SA-58500
Base alignment	flat base
Version	Normal
Weight (g)	2540
Order number	DST-101-JS
Series	DST
Price from	on request

DST-101-J Technical Drawing Vertical acting Hold-Down Toggle Clamp with horizontal mounting base and solid bar 5500N
