M64 Heavy duty push-pull type toggle clamp

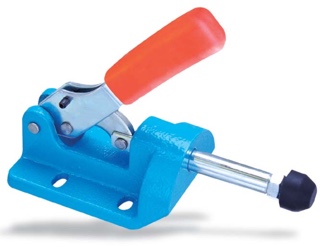

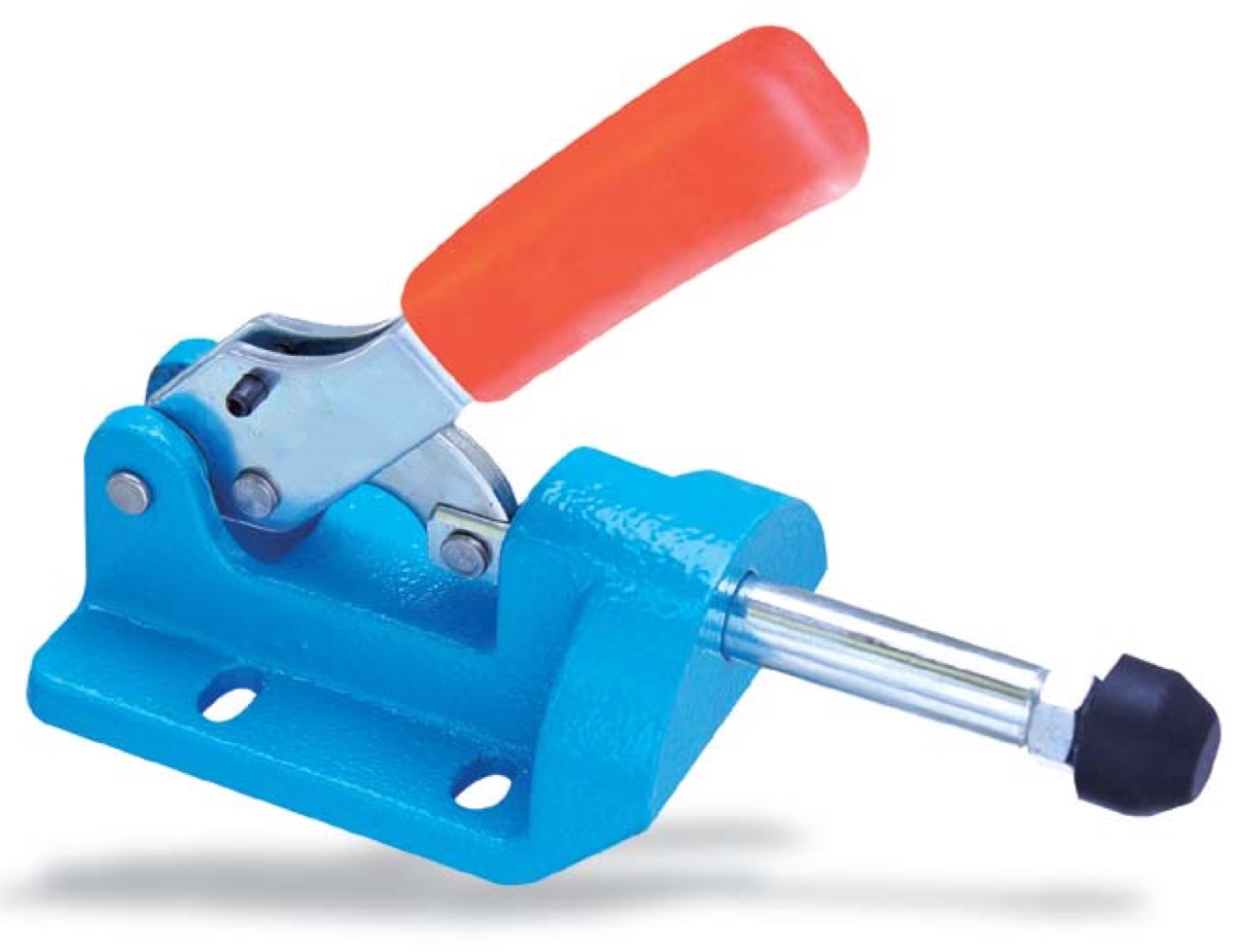

M64 Heavy duty push-pull type toggle clamp with malleable cast iron, varnished body

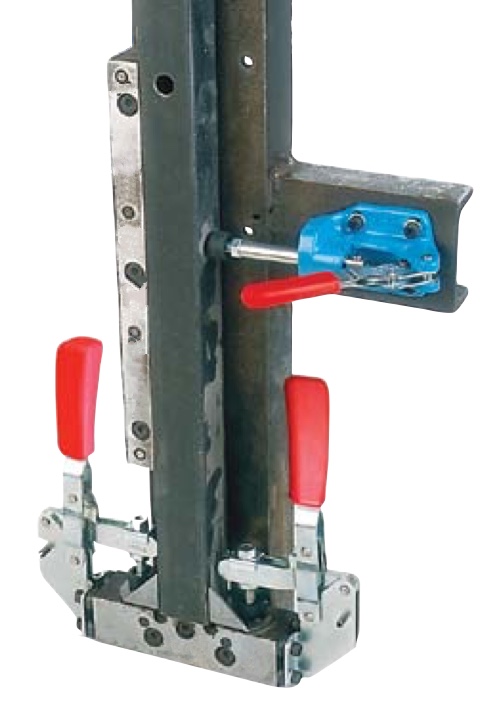

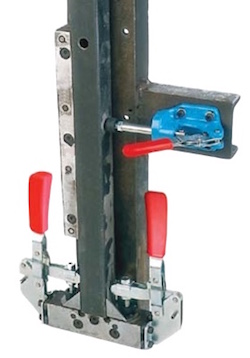

M64 Heavy duty push-pull type toggle clamp application example

M64 Heavy duty push-pull type toggle clamp :

For push- and pull-clamping, with flat base
The clamps lock in open and closed handle positions.
Equal operation of rod and lever
High Clamping forces 4kN up to 25kN
Material : Body/base in malleable cast iron, varnished
Lever parts and rod in tempered steel, galvanized and zinc plated
Rivets of stainless steel and hardened bushings.
Bearings and bushings are greased/pre-lubricated.
Oil resistant, ergonomic red handles designed for high user comfort.
Complete with tempered, galvanized clamping screw and rubber nose.

Note :

e.g. alternative suitable for 6842, etc.
CAD-files are available for free download below!

Product Datasheet (Download)

Order- No.	Size	F1 ⮕	F2 ⬅︎	Total height	Total length	Clamping screw	Weight	Prices from	CAD
Order- No.	Size	[kN]	[kN]	[mm]	[mm]		[g]	[EUR]	CAD
M64-3	3	4.0	4.0	115	191	M8 x 35	880	33,80
M64-5	5	10.0	10.0	133	245	M12 x 50	1735	44,50
M64-7	7	25.0	25.0	170	333	M12 x 50	3745	83,40

M64 Technical Drawing Heavy duty push-pull type toggle clamp

Order- No.	Size	b	b1	b2	c	d	f	g	h	m	l	n	s	CAD
M64-3	3	72	99	32	28	6.5	30	63	40	32	36	43	12
M64-5	5	86	128	40	35	8.5	45	72	75	42.5	43.5	53	16
M64-7	7	98	163	50	40	11.5	45	96	100	55	65	73	22
