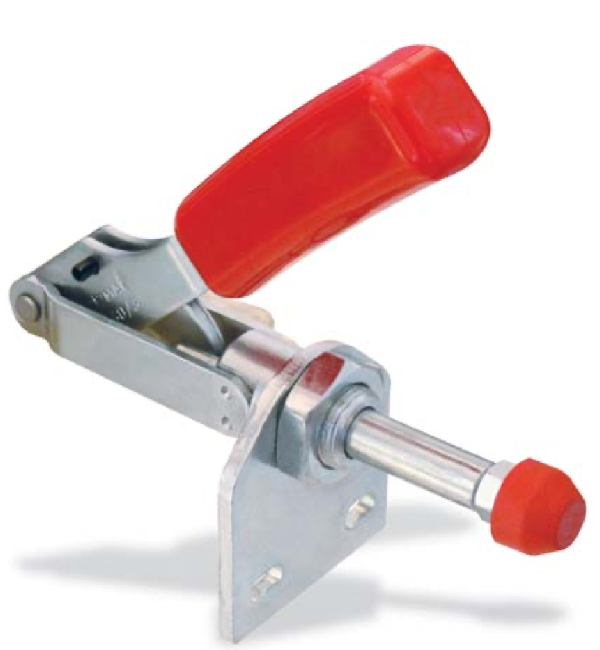

Push-pull type toggle clamp with vertical base
- For push- and pull-clamping.
- Material : Galvanized and zinc-plated quality steel
- Stainless steel version optionally available (M60DP)
- Rivets of stainless steel and hardened bushings.
- Bearings and bushings are greased/pre-lubricated.
- Oil resistant, ergonomic handles.
- Complete with tempered, galvanized clamping screw and rubber nose.
- e.g. alternative suitable for 6841, etc.
- CAD-files and prices on request!
Product Data & Variants
| Order No. |
Size |
F1 |
F2 |
Height |
Length |
Stroke |
Clamping
screw |
Weight |
Price |
CAD |
PDF |
| [kN] | [kN] | [mm] | [mm] | [mm] | [mm] | [g] | [EUR] |
| M60D-0 |
0 |
0.8 |
0.8 |
40 |
110 |
16 |
M4 x 20 |
80 |
15.5 €
|
|
|
| M60D1 |
1 |
1 |
1 |
58 |
120 |
20 |
M4 x 20 |
120 |
17,60 €
|
|
|
| M60D-2 |
2 |
2 |
2 |
80 |
175 |
28 |
M6 x 25 |
270 |
19.8 €
|
|
|
| M60D-3 |
3 |
2.5 |
2.5 |
102 |
190 |
32 |
M8 x 35 |
450 |
23.80 €
|
|
|
| M60D-5 |
5 |
4.5 |
4.5 |
123 |
230 |
40 |
M12 x 50 |
960 |
32.90 €
|
|
|

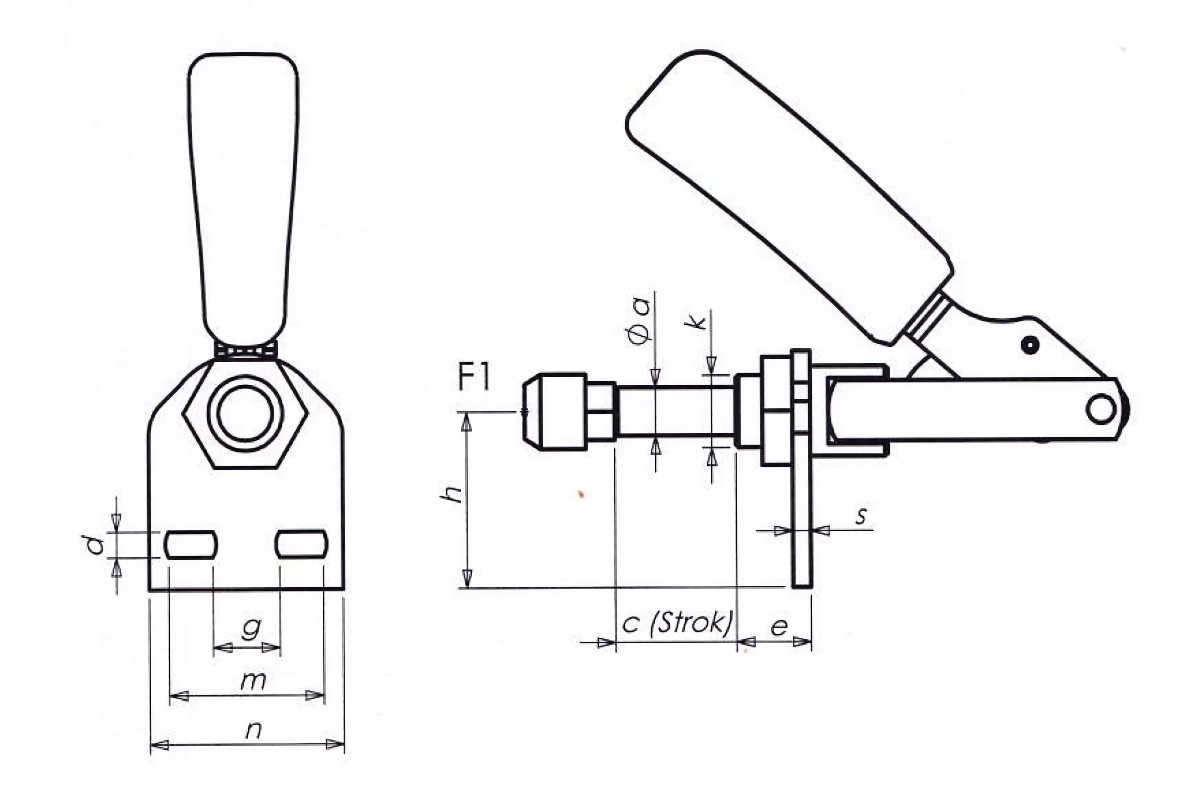

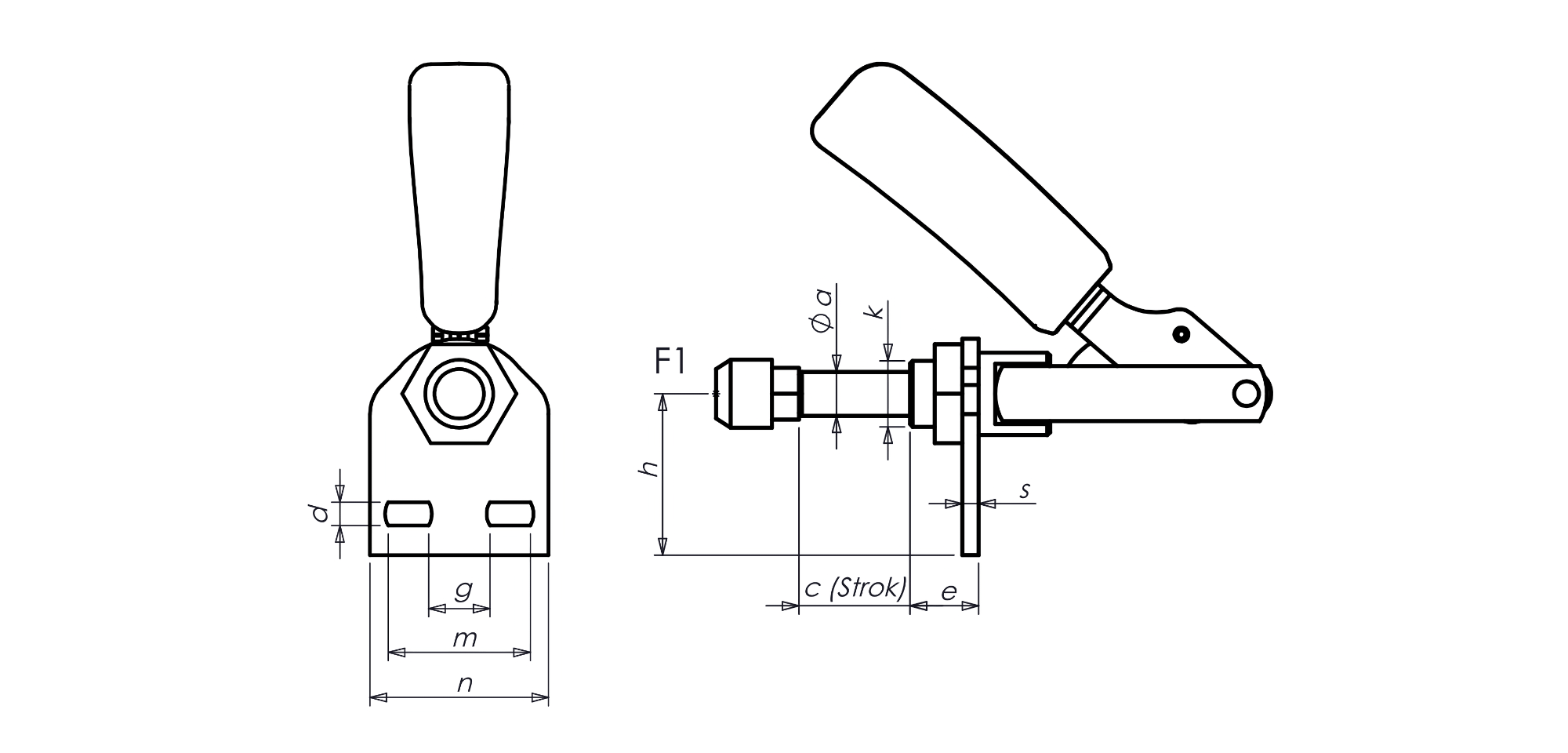

| Order-No. | Size | a | c | d | e | g | h | k | m | n | s | CAD |
|---|
| M60D-0 |
0 |
6 |
16 |
4.5 |
10 |
16 |
24.5 |
M10 x 1 |
16 |
25 |
2.5 |
|
| M60D-1 |
1 |
8 |
20 |
4.5 |
17 |
15 |
31 |
M12x1.5 |
20 |
30 |
3 |
|
| M60D-2 |
2 |
10 |
28 |
5.5 |
19 |
28.5 |
45 |
M16x1.5 |
39.5 |
50 |
4 |
|
| M60D-3 |
3 |
12 |
32 |
6.5 |
18 |
30 |
51 |
M20x1.5 |
42 |
60.5 |
5 |
|
| M60D-5 |
5 |
16 |
40 |
8.5 |
25 |
28 |
59 |
M24x1.5 |
46 |
65 |
6 |
|
