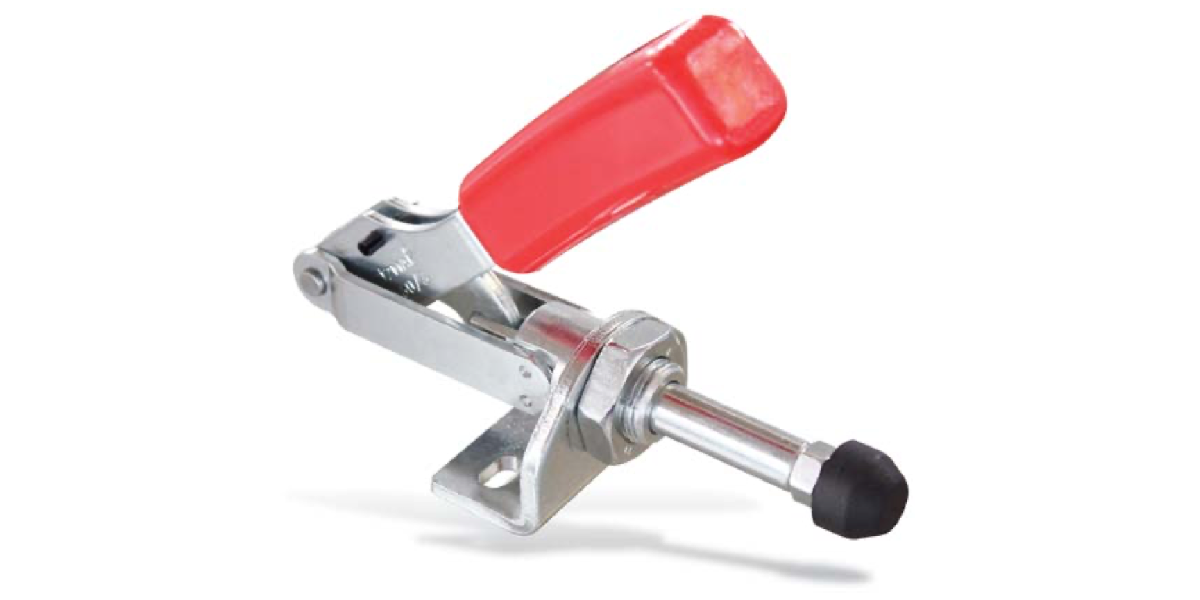

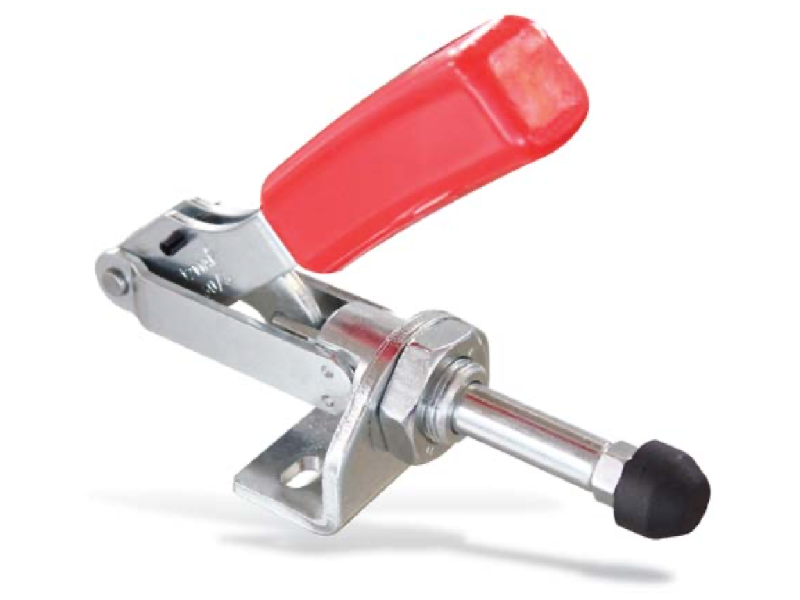

M60 Push-pull type toggle clamp with angle base

M60 Push-pull type toggle clamp with angle base

M60 Push-pull type toggle clamp with angle base M60 Application example push-pull type toggle clamp with angle base

Push-pull type toggle clamp with angle base

  • For push- and pull-clamping.
  • Material : Galvanized and zinc-plated quality steel
  • Sizes 2 and 3 are available in stainless steel version (M60P)
  • Rivets of stainless steel and hardened bushings.
  • Bearings and bushings are greased/pre-lubricated.
  • Oil resistant, ergonomic handles.
  • Complete with tempered, galvanized clamping screw and rubber nose.
  • e.g. replacement for 6841, etc.
  • Prices not listed available on request!
Product Datasheet (Download)
Order-
No.		SizeF1
⮕		F2
⬅︎		Total
height		Total
length		Clamping
screw		WeightPriceCAD
[kN][kN][mm][mm][g][EUR]
M60-0 0 0.8 0.8 40 110 M4 x 20 80 15,50
M60-1 1 1.0 1.0 58 120 M4 x 20 120 17,60
M60-2 2 2.0 2.0 80 175 M6 x 25 270 19,80
M60-3 3 2.5 2.5 102 190 M8 x 35 450 23,80
M60-5 5 4.5 4.5 123 230 M12 x 50 960 32,90
⬇︎ ⬇︎ STAINLESS STEEL VERSION - M60P ⬇︎ ⬇︎
M60P-2 2 2.0 2.0 80 175 M6 x 25 335 54,50
M60P-3 3 2.5 2.5 102 190 M8 x 35 530 69,80

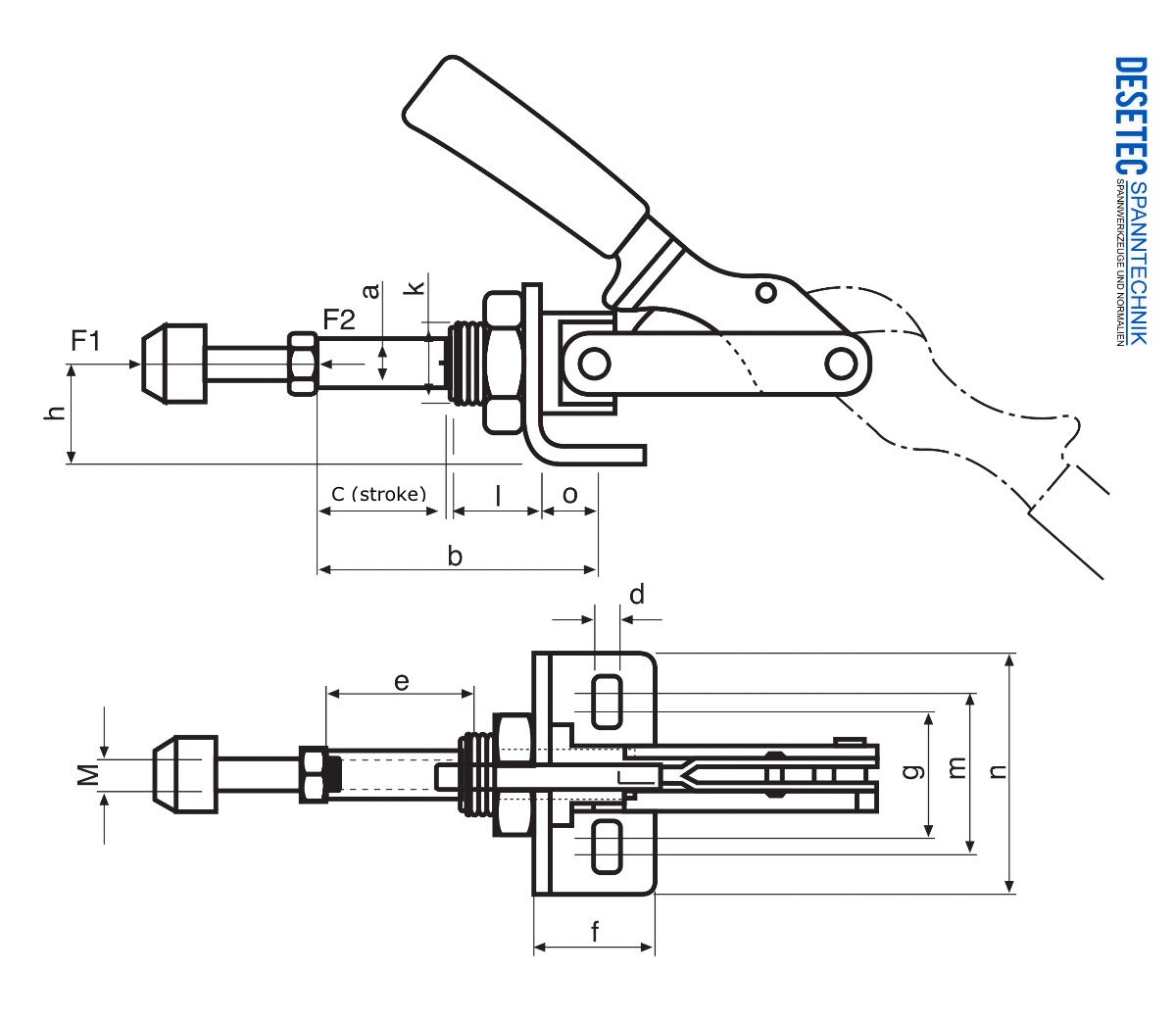

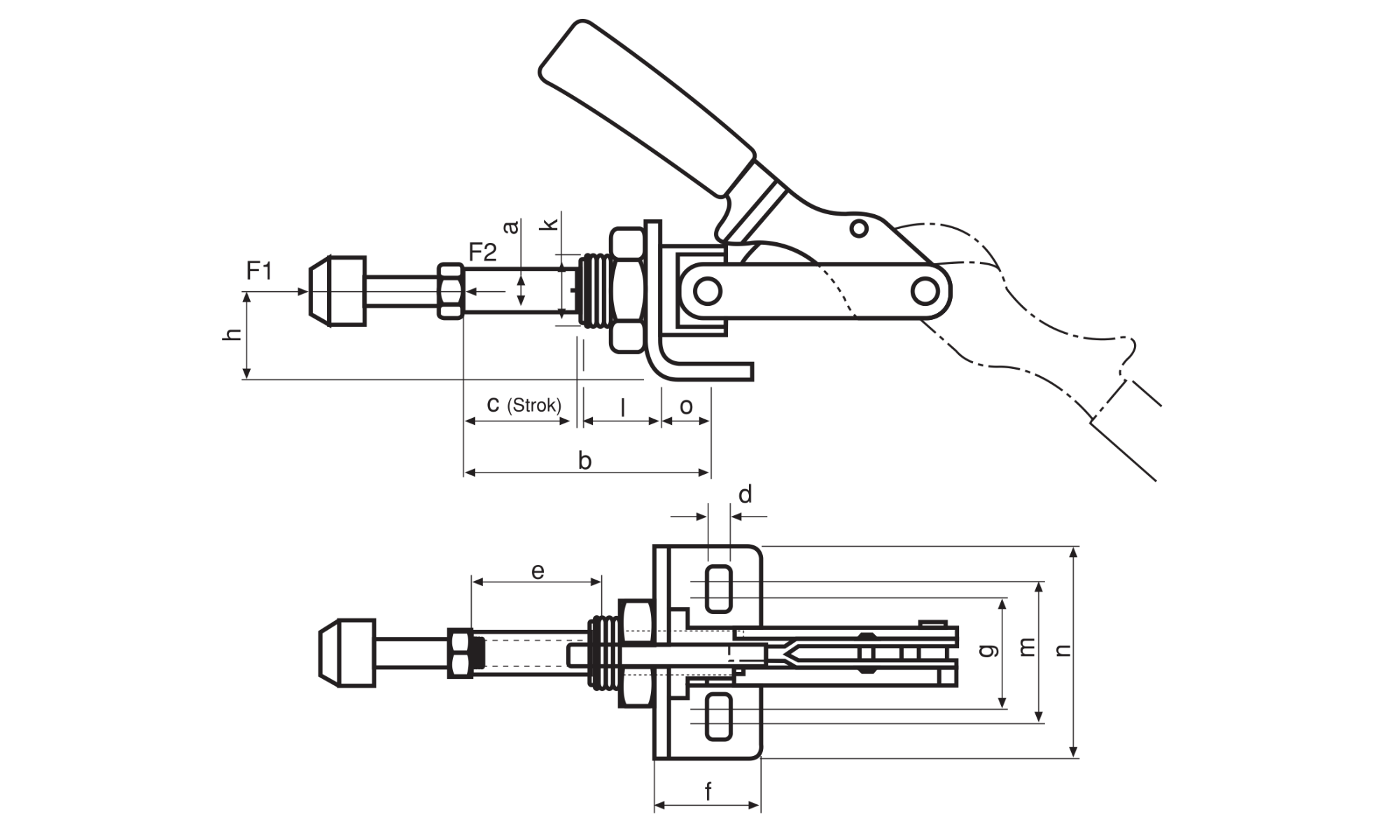

M60 Technical Drawing Push-pull type toggle clamp with angle base
Order-
No.		SizeabcdefghklmnoCAD
M60-0 0 6 34.5 16 4.5 17 16.5 16 12 M10 x 1 10 16 25 7
M60-1 1 8 44 20 4.5 24 20 15 15.5 M12 x 1.5 13.5 20 30 7
M60-2 2 10 59 28 5.5 28 28 28.5 22 M16 x 1.5 16 39.5 50 12.5
M60-3 3 12 70 32 6.5 36 32 30 27 M20 x 1.5 19 42 60.5 15
M60-5 5 16 82 40 8.5 41 36 28 30 M24 x 1.5 26 46 65 15

MS60/1 Mounting angle

MS60/1 Mounting angle for push-pull type toggle clamp

Mounting angle

  • Galvanized and passivated quality steel
  • Optional in stainless steel version available
  • Customized modifications according to specifications deliverable!
Sizedd1eLbhs
0 4.5 4.5 16 25 16 12 2.5
1 4.5 6.5 17.5 30 20 15.5 3
2 5.5 8 34 50 28 22 4
3 6.5 12 36 60 31.5 26 5
5 8.5 17 37 65 36 30 6

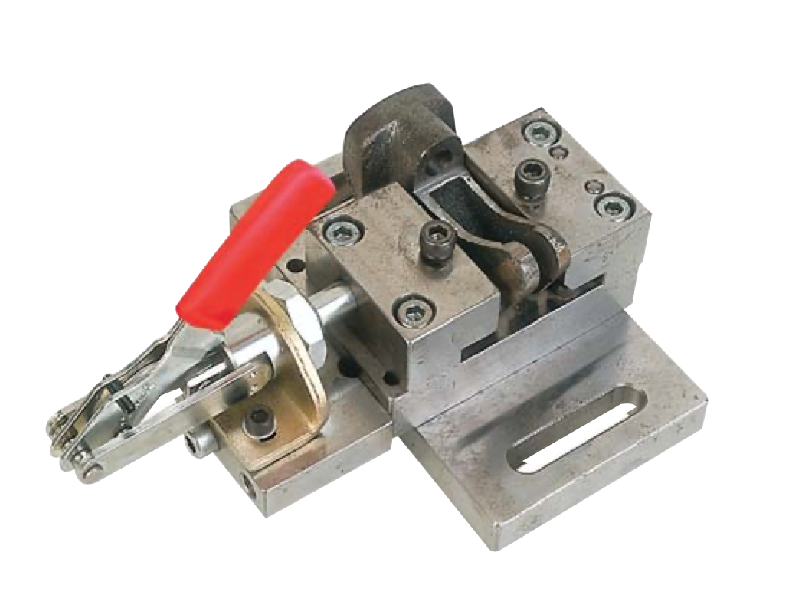

M60 Application example push-pull type toggle clamp with angle base

M60S Push-pull type toggle clamp with safety latch

Push-pull type toggle clamp with safety latch

  • The safety latch prevents unintentional or vibration-induced opening of the clamp.
  • The console or mounting plate can be adapted according to specifications regarding dimensions and hole pattern.
  • Modifications and special versions are possible even for relatively small quantities.

Download CAD-file
